Module giao tiếp với đầu báo thường

General

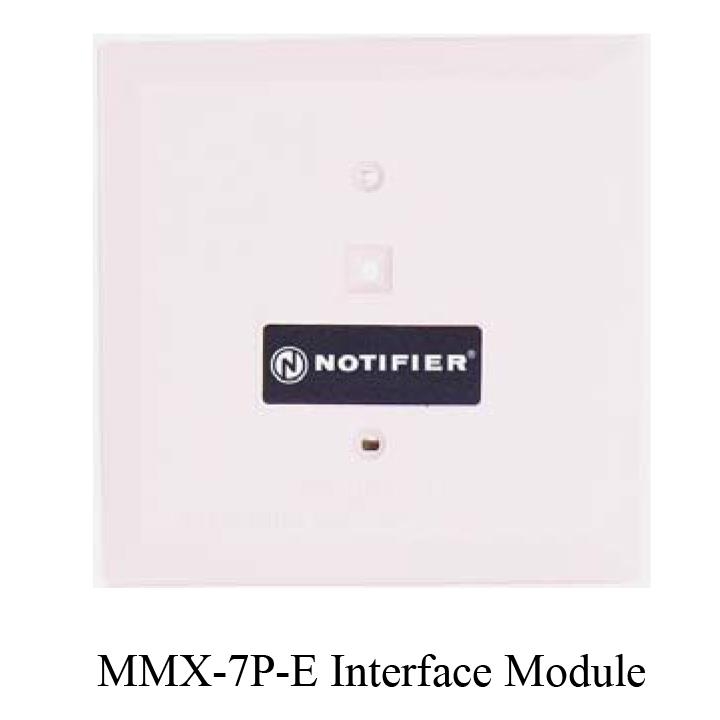

The MMX-7P-E Intelligent Interface Monitor Module allows intelligent panel to interface and monitor two-wire conventional detectors. It transmits the status (normal, open or alarm) of one full zone of conventional detectors back to the control panel. The history of each event is recorded. All two-wire detectors being monitored must be compatible with the module.

MMX-7P-E Interface Module is addressable and software addressing designed, each module can be programmed from address 101 to 199 with the address encoder. MMX-7P-E Interface Module is compatible with the NOTIFIER® N-6000 Fire Alarm Control Panel (FACP), and each interface module occupies one address point in FACP. A build-in address bit (not settable) is used by the system to differentiate module address from sensor address.

Features

ySupports compatible two-wire detectors.
ySupervises IDC wiring and connection of external

power source.
yHigh noise (EMF/ RFI) immunity.

y SEMS screws for ease of wiring. yLocking output drive circuit.

yLED flashes during normal operation and latches steady to indicate alarm. LED light is programmable to be off, flashing, or latches steady.

Specification

yOperating Voltage : 22.2 ~ 25.5 VDC
yStandby Current : 200μA@24VDC (LED flashing)

yMax. Current : 5.1mA@24VDC (LED latches steady) yEOL Resistance : 3.9K ohms
yExternal Supply Voltage : 16 ~ 28VDC
