General

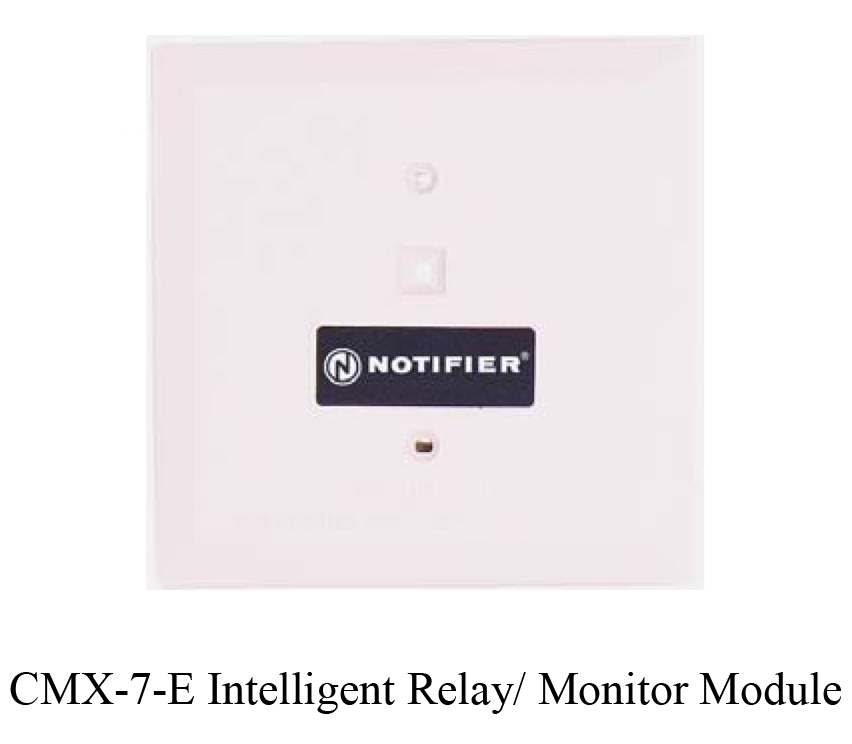

The CMX-7-E Monitor Module is a compact addressable module which contains one relay output and one monitor input. These two input and output points can work independently. The relay output is to activate devices, while the monitor input is to supervise status feedback from the contact devices.

Features

yFull analog supervision.
yLocking output drive circuit.

yExcellent tamper-resistance ( EMF/RFI ). ySEMS screws for ease of wiring.

yOccupies two module addresses, the base address N for relay output and N+1 for monitor input.

yLED flashes during normal operation and latches steady to indicate alarm. LED light is programmable to be off, flashing, or latches steady.

Specification

yOperating Voltage : 15 ~ 32VDC
yOperating Temperature : -10 ~ 50 ºC
yRelative Humidity : 10% ~ 95%RH, non-condensing yRelay Contact Current (Resistive) :

- 2A@30VDC - 1A@125VAC

yDimensions : 120mm (Height) × 105mm (Width)

Application

Under normal circumstances, the CMX-7-E monitor module occupies two consecutive addresses, N as the CBE output address and N+1 as the supervision input address. The encoder sets the module address to N, and the address N+1 will be assigned automatically.

If no supervision input is required, short T8 and T9 before and only when addressing. The module output address will
