Đế đầu báo

General

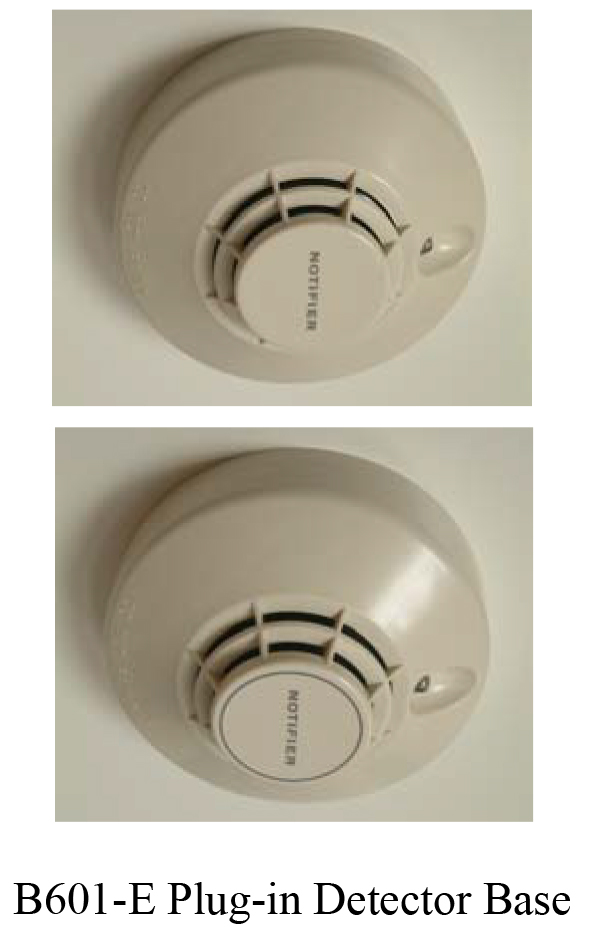

B601-E Plug-in Detector Base is used with NOTIFIER®

ND700 series Intelligent Detectors. B601-E detector base is compatible with the ND-751P-E Intelligent Plug-in Photoelectric Smoke Detector heads and ND-751T-E Intelligent Plug-in Thermal Detector heads. This base is intended for use in 2-wire systems, with screw terminals provided for signal connections.

Specifications

yVoltage Range : 15 ~ 32VDC
yStandby Current : 735μA, 24VDC at Normal
yMax. Alarm Current : 1.5mA
yLED Current: 3.5mA, 24 VDC
yOperating Temperature : -10ºC ~ 55 ºC
yRelative Humidity : 10% ~ 95%RH, non-condensing yDimensions :

- Diameter : 102mm

- Height : 15mm

Wiring
