Đầu báo khói địa chỉ ND-751P-E

General

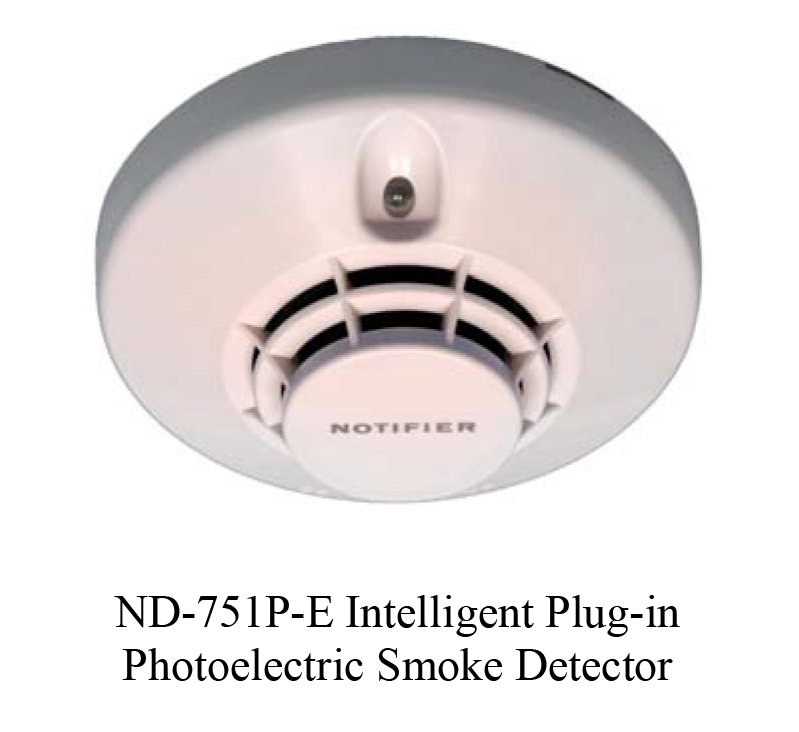

ND-751P-E Intelligent Plug-in Photoelectric Smoke Detector is a new developed product by NOTIFIER® in order to meet the sophisticated market demands. This new smoke detector has embedded a Central Processing Unit (CPU), and is addressable and software addressing designed; with integral communication provide features that surpass conventional detectors. ND-751P-E detector is compatible with the NOTIFIER® N-6000 Fire Alarm Control Panel (FACP), and is used with B601 Intelligent Detector Base for connection.

ND-751P-E detector is designed to provide open area protection, which applicable for areas such as residential buildings, office complexes, schools, college campuses and any others utilities.

Features

yDrift Compensation: The detector adjusts its alarm threshold according to the site condition such as temperature, humidity, dust, etc, so that its sensitivity remains unchanged while the environment changes.

ySensitivity Options: The detector can set and adjust its sensitivity according to different environments.

yThe LED can be latched on by code command from the control panel for an alarm indication. It can also be unlatched to the normal condition by code command.

yStable communications techniques with noise immunity.

Specifications

yOperating Temperature : -10ºC ~ 55 ºC
yRelative Humidity : 10% ~ 95%RH, non-condensing yVoltage Range : 15 ~ 32VDC
yStandby Current : ≤ 450μA
yMax. Alarm Current : 3.5mA
yDimensions :

NOTIFIER® is registered trademark of Honeywell International Inc.

©2006 Honeywell International Inc. All rights reserved. Unauthorized use of this document is strictly prohibited.
