Module giám sát đầu vào

General

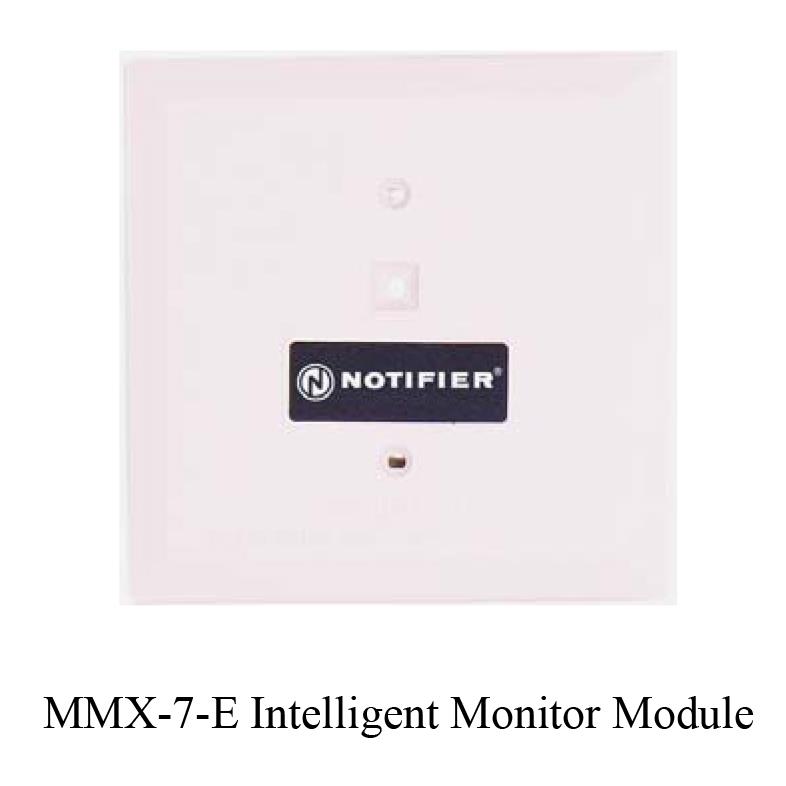

The MMX-7-E Intelligent Monitor Module is designed to interface with contact devices, such as security contacts, waterflow switches, conventional manual fire alarm pull stations, or other normally-open dry-contact alarm activation devices. The MMX-7-E Monitor Module supervises these devices and reports their current statuses and alarm statuses to the control panel. The history of each event is recorded.

MMX-7-E Monitor Module is addressable and software addressing designed, each module can be programmed from address 101 to 199 with the address encoder. MMX-7-E Monitor Module is compatible with the NOTIFIER® N-6000 Fire Alarm Control Panel (FACP), and each monitor module occupies one address point in FACP.

Features

y Full analog supervision. yLow standby current.

yRugged construction.
y SEMS screws for ease of wiring.

yLED flashes during normal operation and latches steady to indicate alarm. LED light is programmable to be off, flashing, or latches steady.

yStable communications techniques with noise immunity.

Specifications

yOperating Voltage : 15 ~ 32VDC
yOperating Temperature : -10 ~ 50 ºC
yRelative Humidity : 10% ~ 95%RH, non-condensing

yStandby Current : 200μA@24VDC (LED flashing) yMax. Current : 5mA@24VDC (LED on)

yDimensions : 120mm (Height) × 105mm (Width)

NOTIFIER® is registered trademark of Honeywell International Inc.

©2006 Honeywell International Inc. All rights reserved. Unauthorized use of this document is strictly prohibited.
