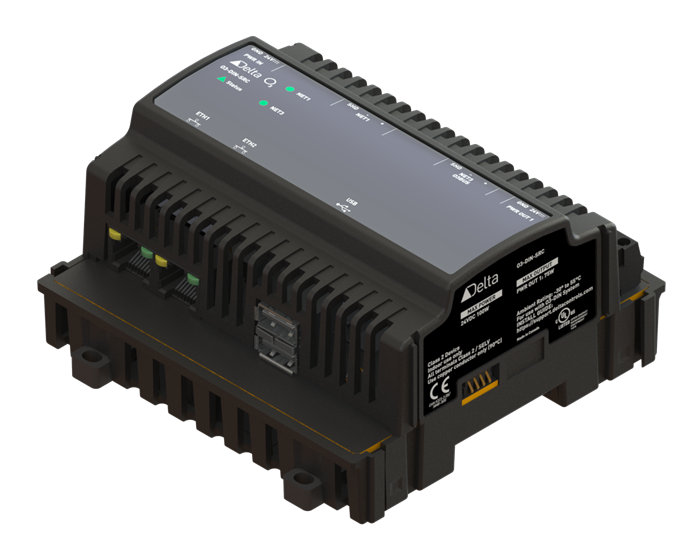

O3-DIN-SRC

Liên hệ

The O3-DIN-SRC is a fully programmable native BACnet ®building controller. As a primary integration engine of the O3system, the O3-DIN-SRCcontains memory storage and external communication ports,as well as the control logic for the expansion modules.

Download Catalog

O3-DIN-SRC


As part of the O3-DIN system, the O3-DIN-SRC is a fully programmable native BACnet® building controller. The O3-DIN-SRC supports multiple communication methods, including BACnet/IP, BACnet over Ethernet, BACnet MS/TP and Delta LINKnet. It supports BACnet Protocol Revision 14. The O3 single-room controller is the primary integration engine and provides memory storage and external communication ports, as well as the control logic for the expansion modules. A single O3-DIN system includes an O3-DIN controller and 4 or more expansion modules.

warning Cannot be used as a BACnet/IP Broadcast Management Device (BBMD).

warning Uses V4 firmware and requires enteliWEB 4.9 or later.

warning Must be powered by a 24 VDC power supply. It does not accept 24 VAC.

Note: The O3-DIN-SRC does not support the O3-DIN-PWRINJ power injector.

O3-DIN Protocol Gateways

The Modbus RTU and EnOcean software gateways are included in the standard firmware for the O3-DIN-SRC. The Modbus RTU gateway does not require additional hardware modules; the EnOcean gateway requires a CON-ENOC or an O3-HUB with EnOcean. The Modbus RTU gateway supports up to 300 Modbus registers total per O3-DIN-SRC for up to 4 Modbus devices. The EnOcean Gateway currently supports up to 134 points per EnOcean radio with a maximum of 32 devices. DALI and SMI gateways require a module to be added.

Description
The O3-DIN-SRC is a fully programmable native BACnet ®building controller. As a primary integration engine of the O3system, the O3-DIN-SRCcontains memory storage and external communication ports,as well as the control logic for the expansion modules. The O3-DIN-SRCcan support up to 4 expansion modules.The O3-DIN-SRCsupports multiple communication methods, including BACnet/IP, BACnet over Ethernet, BACnet MS/TP and Delta LINKnet.

Specifications
BACnet Protocol Rev 14
BACnet Device Profile
BACnet Building Controller (B-BC)
Device Addressing
Software addressed
Connectors
Removable screw-type terminal
connectors
Wiring Class
Class 2 / SELV
Power
24 VDC, 2 W typical (7 W max)
24 VDC, 100 W max output fully loaded
Power Out
75 W max
