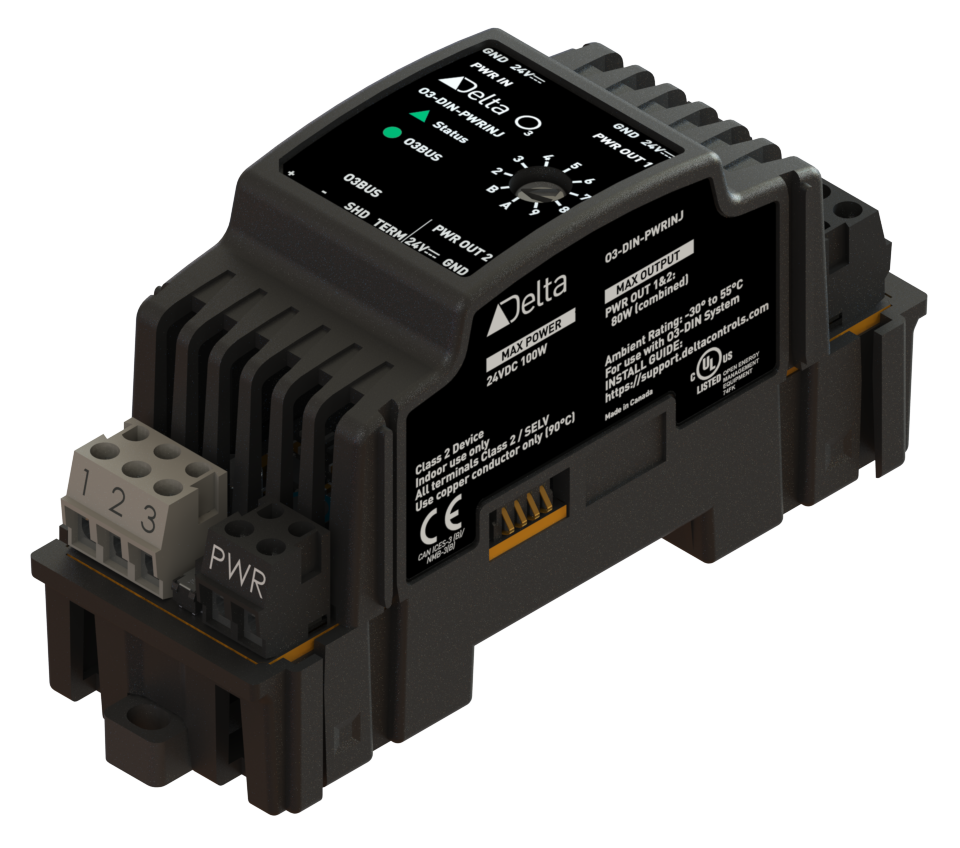

O3-DIN-PWRINJ: Power Injector Expansion Module
The O3-DIN-PWRINJ power injector extends the reach of the O3 system by increasing the number of O3-DIN modules that can be controlled by a single O3-DIN-CPU controller. These power injector expansions can be located up to 70 m (230 ft) away from the controller.
Up to 8 power injectors can be connected to a controller's O3BUS network and each power injector can support up to 4 modules.
Note: Gateway modules (O3-DIN-DALI and O3-DIN-SMI) must be installed on the CPU directly and/or on a single power injector in the system.
Note: The O3-DIN-PWRINJ power injector is not supported for the O3-DIN-SRC model.
The O3-DIN-PWRINJ power injector increases the number of O3-DIN modules on an O3 system by providing power to a maximum of 4 O3-DIN I/O or gateway modules. These power injector expansions can be located up to 70 meters (230 ft) away and still be directly controlled by the O3-DIN-CPU room controller.
