As part of a O3-DIN system, the O3-DIN-CPU is a fully programmable native BACnet®  building controller. The O3-DIN-CPU supports multiple communication methods, including BACnet/IP, BACnet over Ethernet, BACnet MS/TP and Delta LINKnet. The O3-DIN-CPU supports BACnet Protocol Revision 14.

Download Catalog

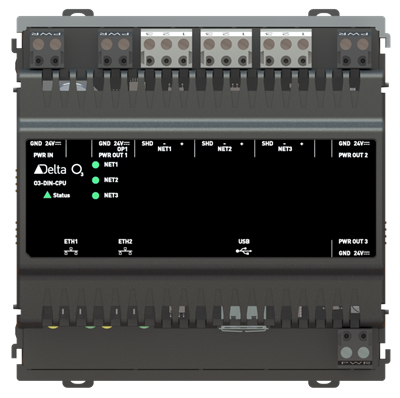

O3-DIN-CPU




As part of a O3-DIN system, the O3-DIN-CPU is a fully programmable native BACnet®  building controller. The O3-DIN-CPU supports multiple communication methods, including BACnet/IP, BACnet over Ethernet, BACnet MS/TP and Delta LINKnet. The O3-DIN-CPU supports BACnet Protocol Revision 14.

The O3-DIN-CPU contains the primary integration engine, memory storage, and external communication ports, as well as the control logic for the expansion modules. A single O3-DIN system includes an O3 controller and 4 expansion modules.

warning The O3-DIN-CPU must be powered by a 24 VDC power supply. It does not accept 24 VAC.

warning The O3-DIN-CPU cannot be used as a BACnet/IP Broadcast Management Device (BBMD).

warning The O3-DIN-CPU uses V4 firmware, the latest version of which requires enteliWEB 4.9 or later.
