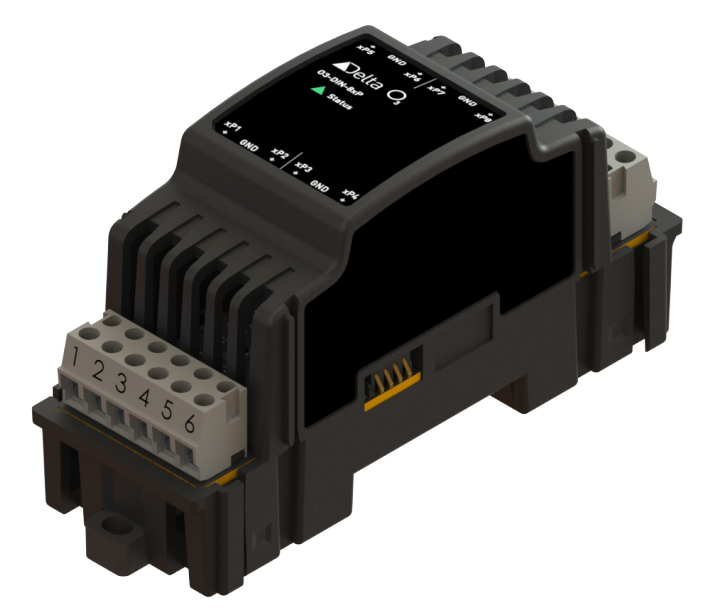

The O3-DIN-8xP is an I/O module for the O3-DIN system. Its 8 universal points can be
configured to create the exact combination of inputs and/or outputs for a given
application. When expansion is needed in the future, it’s as easy as adding more
modules to an existing system.
The O3-DIN-8xP I/O module has 8 universal points. As part of a O3-DIN system, I/O modules can be software-configured to provide the exact combination of inputs and/or outputs for a given application. When expansion is needed in the future, it’s as easy as adding more modules to the existing system.
Description
The O3-DIN-8xP is an I/O module for the O3-DIN system. Its 8 universal points can be
configured to create the exact combination of inputs and/or outputs for a given
application. When expansion is needed in the future, it’s as easy as adding more
modules to an existing system.
Specifications
Universal Points
Up to 8 inputs (16-bit), supporting:
0–5 VDC
0–10 VDC
10 kΩthermistor
Dry contact (using 10 kΩthermistor
software setting)
4–20 mA (using external 250 Ω
resistor on 0–5 V setting)
Up to 8 outputs (12-bit), supporting:
0–10V @ 20 mA max (sourcing)
1–10V @ 10 mA max (sinking)
Connectors
Removable screw-type terminal
connectors
Wiring Class
Class 2 / SELV
Application
The O3 system is a complete solution that combines HVAC, access control and lighting control in a modular system. It combines multiple protocols and I/O points in one unit.The O3system improves room control, avoids duplicate devices and offers a satisfying occupant experience at a lower energy cost.
