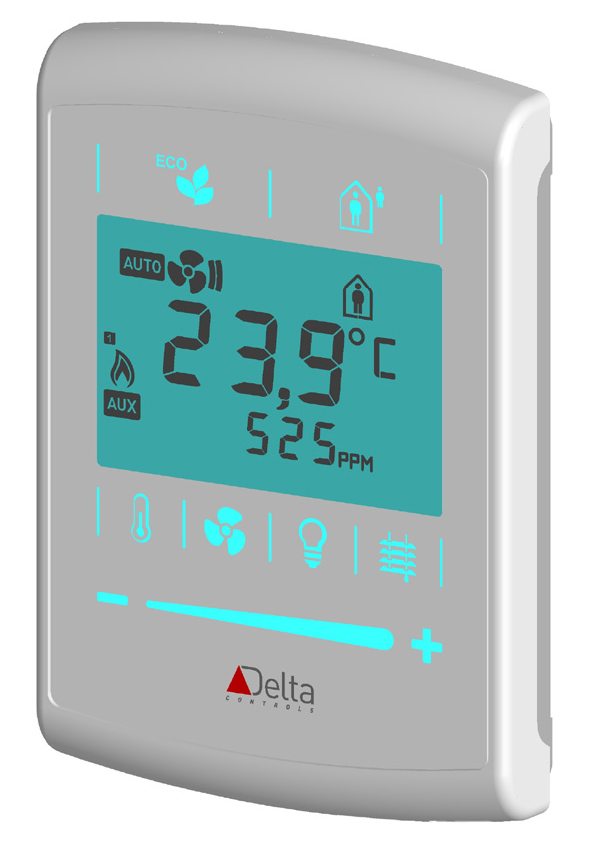

Network Sensors: eZNS-T100

Description

The eZNS-T100 network sensor offers building occupants an intuitive touch-interface to adjust individual comfort levels while tailoring to the needs of their specific market. Along with a temperature sensor with humidity, CO2 and motion options, the eZNS also offers a choice of backlit colors to provide additional user feedback and esthetic appeal.

The eZNS sensor’s NFC technology allows installers to use NFC-enabled mobile devices to configure the eZNS and enable enteliWEB integration.

Application

The eZNS is suitable for a wide range of sensing applications, from basic temperature monitoring, to indoor air quality and occupancy sensing. A customizable interface allows for intuitive user interaction.

An available external input allows for additional zone monitoring such as window or door contact, temperature averaging or other dry contact sensor information.

When paired with an application controller, the eZNS supports advanced control strategies such as demand control ventilation, energy savings based on occupancy and optimal user comfort.

Features

RGB backlight allows choice of colors to indicate conditions, alarms and night mode

LCD screen displays users’ button and device mode selections

Capacitive touch zones allow custom button sizes

Multiple button layout options. Simple one-touch buttons, or two-touch buttons for added functionality

Slider to quickly adjust setpoint or tap for precise changes

Fully programmable in GCL+

USB Service port, software enabled or disabled. Service tool not required.

Smartphone and tablet integration and set up using NFC technology

Recessed mount for minimal profile or surface mount backplate options

Fits most electrical boxes worldwide

2-piece design with tamper set screw lock

Specifications

LCD

2-line custom segmented display with icons

Buttons

2 rows of 4 capacitive touch zones, allowing up to 8 individual buttons or combined to form larger buttons

Backlight (Optional)

Optional RGB LED backlight for multicolor LCD and button illumination

Temperature

Digital Temperature Sensor +/- 0.2° C (+/- 0.36°F)

Humidity Sensor (Optional)

Accuracy +/- 3%

CO2 Sensor (Optional)

Dual Beam, Self Calibrating NDIR Detection

Range: 0-2000 ppm

Accuracy @ 77°F (25°C): ± 50ppm + 2% of value

Temperature Dependence: 2ppm/°C (1 ppm/ °F) typical

Pressure Dependence: 0.13% of reading per mm Hg

Stability: 20 ppm/year (typical)

Occupancy Sensor (Optional)

Passive infrared motion (PIR) sensor

Range: 5m (16.4 ft.)

Inputs

1 10kΩ input (16 bit A/D)
