Description

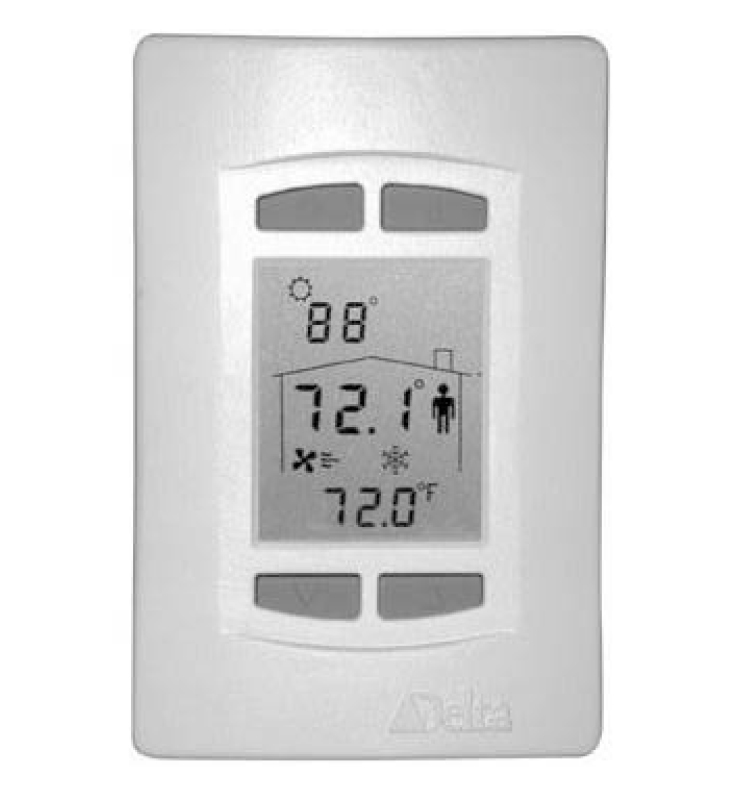

The DNT-T103 is an intelligent room thermostat with a custom 3-value, 96 segment, LCD display. The DNT-T103 can communicate on Delta’s LINKnet network or directly on a BACnet MS/TP network.

The DNT-T103 can display a wide-range of digital or analog values including setpoints, temperature, airflow, heating and cooling status, fan speed, valve and damper position, and more. When connected on a BACnet MS/TP network, the DNT-T103 functions as an independent BACnet thermostat. When connected to a Controller, on a LINKnet network, the DNT-T103 provides a programmable remote sensor and expanded I/O capabilities.

Application

The DNT-T103 is designed to be a low-cost solution

for control of unitary equipment. It has built-in,

configurable algorithms for VAV, VVT, fan coil/unit

ventilator, heat pump, radiation and humidification

applications.

The DNT-T103 may also be connected to a LINKnet

network to provide programmable remote sensor and

expanded I/O capabilities.

Features

—Native BACnet™ firmware
—BACnet MS/TP or LINKnet communications —Configurable 3-value, 96 segment, LCD display

(with optional backlighting)
—4 Configurable push buttons
—Controller firmware can be flash loaded over the

network
—Network termination is jumper selectable on each

device
—Derived Network Addressing (DNA) for simple

integration into a standard network architecture —Field selectable applications
—Service port

Specifications

BACnet Device Profile

BACnet Application Specific Controller

(B-ASC)

LCD

3-value and various icons (96 total segments)

with optional backlighting Push Buttons

4 stylized momentary push buttons Temperature Sensor

Thermistor Input - 10kΩ at 77°F (25°C) Accuracy +/-0.36°F from 32-158°F

(+/- 0.2°C from 0-70°C)

Display resolution of 0.1°

Stability 0.24°F over 5 years (0.13°C) Humidity Sensor

Accuracy of +/-2% RH from 0-100% RH

(25°C, Vsupply = 2.6Vdc)

Display resolution of 0.1%

Stability of +/- 1% RH (typical at 50% RH over

5 years)

Note: Extended exposure to >90% RH causes

a reversible shift of 3% RH Inputs

1 Universal input - 10 bit (supporting 0-5v,

0-10v, 10kΩ)

Outputs

3 Binary triac outputs (supporting binary,

PWM or tri-state)

Technology

32-bit processor with internal A/D, Flash and

RAM
