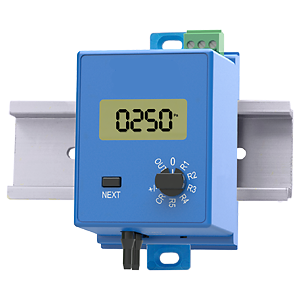

Cảm biến áp suất gió ZPS (Standard and Low Ranges)

Features & Options

• 10 Pressure Ranges & Three Outputs – All Field Selectable
• Standard Range (-5 to +5 WC or -1,250 to +1,250 Pascals) or Low Range (-1.0 to +1.0 WC or -250 to +250 Pascals)
• Free NIST Certificate Included with Each Pressure Unit
• Snaptrack, DIN Rail or Surface Mounting

Measuring building pressure, air velocities and volumes doesn’t get any easier than with the DELTA EZ Pressure Sensor. The revolutionary mounting system allows for 2.75” snaptrack, DIN rail or surface mounting, and the three Outputs and 10 Pressure Ranges are field selectable by simply turning the rotary switch and pressing the “Next” button.

Besides being easy to set up and install, it is also accurate, rugged and economical. The heart of the unit is a micro-machined silicon pressure sensor with excellent accuracy, repeatability and stability. The unit also features short circuit proof outputs and reverse polarity protected inputs to perform under real world conditions.

The LCD display helps with troubleshooting because it displays the actual differential pressure over the entire operational range regardless of which individual pressure range is selected for output to the system controller.

Specifications
Power:
7 to 40 VDC (4 to 20 mA Output)
7 to 40 VDC or 18 to 28 VAC (0 to 5 VDC Output)
13 to 40 VDC or 18 to 28 VAC (0 to 10 VDC Output
Power Consumption:
20 mA max, DC only at 4 to 20 mA Output
4.9 mA max DC at 0 to 5 or 0 to 10 VDC Output
0.12 VA max AC at 0 to 5 or 0 to 10 VDC Output
Load Resistance:
4 to 20 mA Output 850 Ω Maximum @ 24 VDC
0 to 5 VDC or 0 to 10 VDC output 1KΩ minimum
Accuracy for Standard Pressure Ranges at 72°F:
±0.25% of range
Accuracy for Low Pressure Ranges at 72°F:
±0.5% of range for the three lowest unidirectional
and bidirectional ranges
±0.25% of range all other ranges
Stability:±0.25% F.S. per year
Environmental Operation Range:
14°F to 140°F (-10°C to 60°C)
Storage Temperature:-40 to 203°F (-40 to 95°C)
Temperature Error for Standard Ranges:
0.01% FS/°F (0.02% FS/°C)
(±5.0” W.C. @ 14 to 140°F [-10 to 60°C])

Temperature Error for Low Ranges:
0.04% FS/°F (0.07% FS/°C)
(±1.0” W.C. @ 14 to 140°F [-10 to 60°C])
Overpressure:  Proof: 27.68” W.C. (1 PSI),
Burst: 41.52” W.C. (1.5 PSI)
Wiring:Removable terminal block (14 to 24 AWG)*
2 wires (4 to 20mA Current loop)*
3 wires (AC or DC powered, Voltage out)*
Humidity:0 to 95% RH, non-condensing
Port Connection:1/4” tubing (1/8” to 3/16” I.D.)
Enclosure Material:ABS Plastic, UL94, V-0
Mounting: DIN Rail, Snaptrack or Surface Mountable
