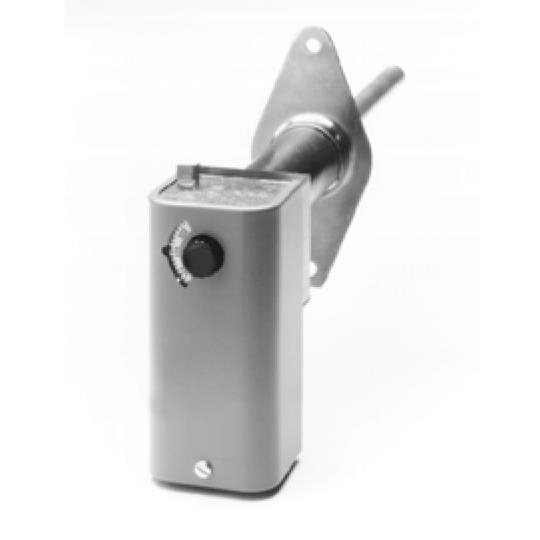

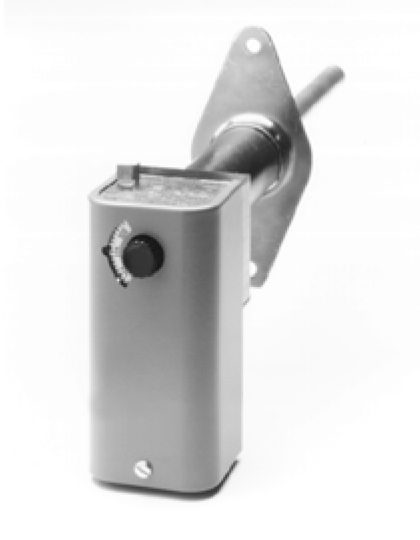

The ET 141 high limit control thermostat is duct mounted and has a rigid bulb, bi-metal rod and tube construction.
Description
The ET 141 high limit control thermostat is duct mounted and has a rigid bulb, bi-metal rod and tube construction.
Application
Normally, the thermostat is used as a high limit control when a "lock-out" type control is desired or required by local code. Often it is located in a return air duct and is wired to shut down air conditioning or ventilating fans when the duct air temperature becomes excessive.
Product Number 141-0530
Specifications
SwitchAction: Single-Pole, Single-Throw (SPST) manual reset
Scale Range: Adjustable from 25°F (-4°C) to 215°F (102°C)
Maximum Bulb Temperature: 300°F (149°C)
Cover Finish: Gray baked enamel galvanized steel
Shipping Weight: 1.8 Ib (0.8 kg)
Thermal System: Rigid bulb, bi-metal rod and tube construction
Agency Certification:
UL Listed: File MP3487, CCN MBPR
CSA Certified: File LR 948,
Class 4813 02
