Immersion Units are available in 51, 102 and 203mm probe lengths. The sensor is potted inside a 6.4mm stainless steel probe with thermally conductive compound
Features & Options
Immersion Units are available in 51, 102 and 203mm probe lengths. The sensor is potted inside a 6.4mm stainless steel probe with thermally conductive compound. All Immersion Units have etched Teflon leadwires and double encapsulated sensors to create a watertight package that can withstand high humidity and condensation.

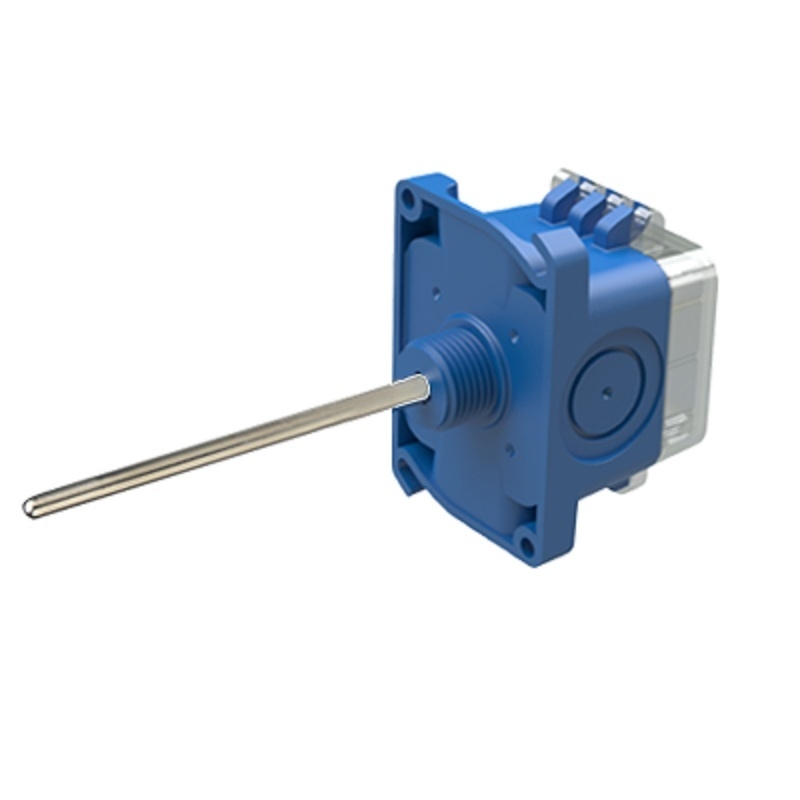

Immersion Units are available with a J-Box, a BAPI-Box 4, or an IP66/NEMA 4 BAPI-Box 2 Enclosure.
Specifications
Enclosure Material:
J-Box: Galvanized Steel
BAPI-Box 2: Polycarbonate, UL94, V-0
BB4 Model: Nylon & Plastic, UL94, V-0
Encl. Rating:
J-Box: IP20, NEMA 1
BAPI-Box 4: IP10 (IP44 with Knockout Plug)
BAPI-Box 2: IP66, NEMA 4
Environmental Operation Range:
-40 to 85 oC (-40 to 185°F)
0 to 100%, non-condensing
Agency: CE
10K-3 Thermistor Sensor Specifications
Resistance: 10 KΩ @ 25°C, -55 to 150°C range
Standard Accuracy:0.2°C (±0.36°F) at 0 to 70°C
Dissipation Constant:2.7 mW/°C
Stability (drift): Less than ±0.1°C (0.18°F) drift over 10 years.
