I/O Modules: eBM-800

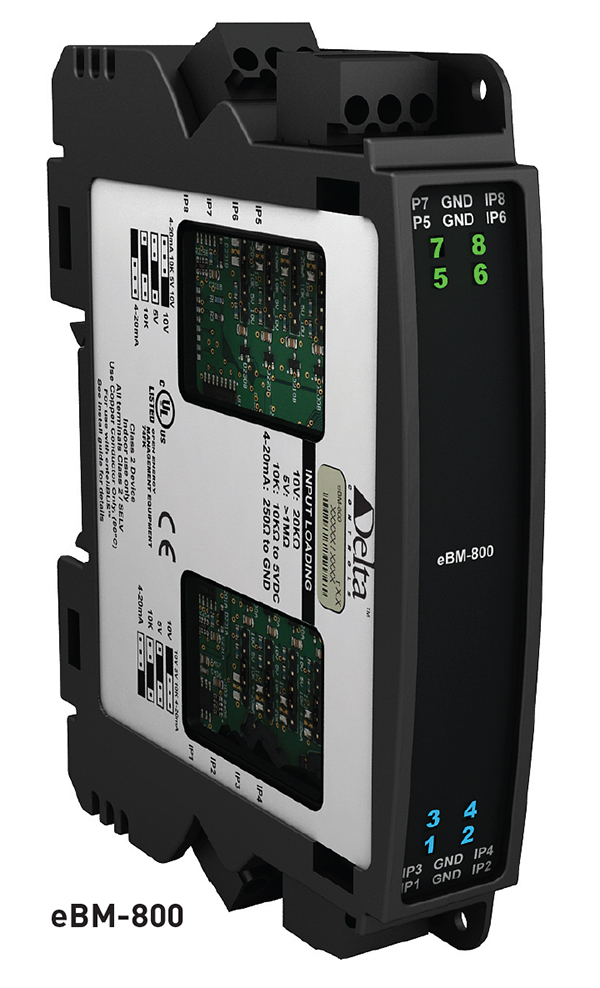

The eBM-800 is an enteliBUSTM I/O Module with 8 universal inputs. Auto detecting and hot swappable I/O Modules are selected to create the exact I/O combination needed for a given application. Should the application require the system to expand in the future, I/O expansion is easy to add.
The enteliBUS Control System is made up of multiple modular components that you select to meet the exact needs of a wide range of HVAC and Access control applications.
The enteliBUS I/O Modules provide the field I/O interface for the enteliBUS Control System. With I/O Modules supporting all common control types this allows the controller I/O mix to be easily and efficiently tailored to fit any application.
— Auto detecting & hot swappable
— Universal inputs (jumper configurable)
— 0-100% LED status indication of each input state.
— Small footprint, DIN rail mountable
— Modular design provides flexibility, ease of service, and reduced cost for future upgrades/expansion
8 Universal inputs (12 bit), jumper configurable for:
• 0-5 VDC, > 1MΩ loading
• 0-10 VDC, 20KΩ loading
• 10 KΩ Thermistor, 10KΩ to 5VDC
• Dry Contact (using 10 KΩ jumper setting)
• 4-20 mA, 250Ω to Gnd
LED status indication of each input:
• Black = 0% to Bright Blue = 100%
3 Pin removable screw-type terminal connectors
Class 2 / SELV
*I/O Module power is supplied from an eBX or eBCON through the Backplane.
0° to 55°C (32° to 131°F)
10 - 95% RH (non-condensing)
