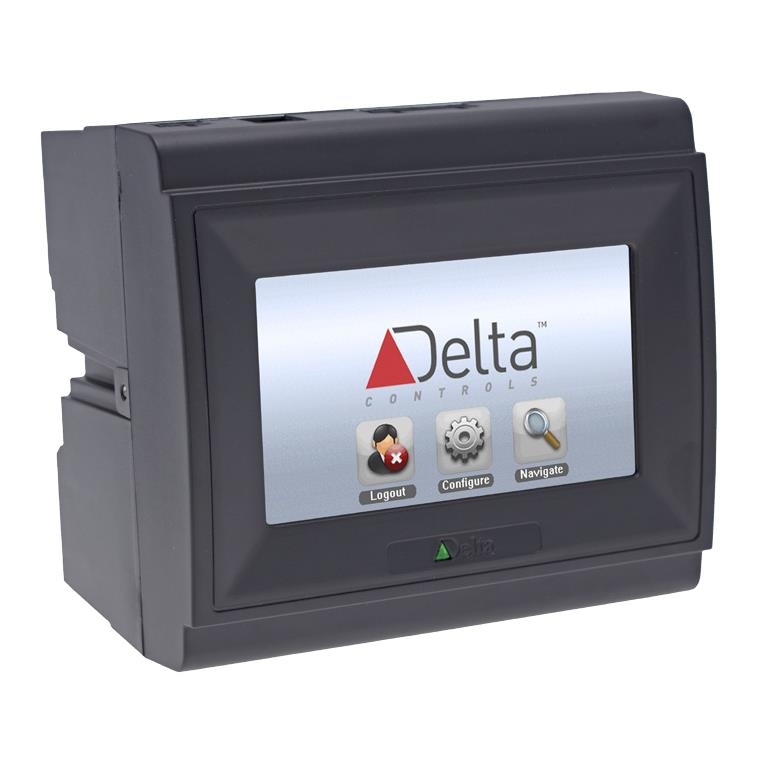

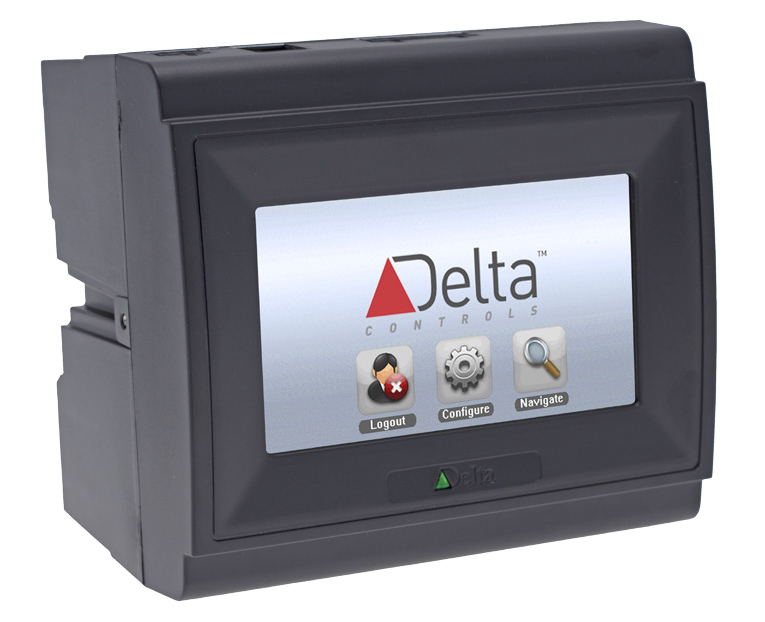

Automation Engine: Manager (eBMGR)


The enteliBUS® Manager (eBMGR) is a fully programmable native BACnet® Building Controller. It supports multiple communications methods including, as standard, BACnet/IP, BACnet over Ethernet, BACnet MS/TP, and Delta LINKnet.

The Manager is the automation engine of the enteliBUS Control System. It contains the primary CPU, memory storage, and external communication ports. The Manager also provides the control logic for enteliBUS I/O expansion backplanes.

An optional integrated LCD touchscreen provides local interface capabilities.



The enteliBUS Control System is made up of multiple modular components that are selected to meet the exact needs of a wide range of HVAC and Access control applications.

The eBMGR has multiple applications. By itself, it is a powerful system manager/ BACnet router. With expansion backplane(s) attached, the eBMGR functions as an expandable I/O controller.

Use the enteliBUS Control System in low to medium density I/O applications to control a single piece of equipment, such as an AHU or chiller. Use it in high density I/O applications to control an entire mechanical room or central plant.


Native BACnet firmware

Fully programmable

BACnet Ethernet, BACnet/IP and BACnet MS/TP communication ports

Integrated LCD touchscreen interface (optional)

Modular, expandable I/O

Advanced fault detection and diagnostics

SD card memory expansion

Firmware upgrade and database load/ save over the network

LED status indications of power/scan and Ethernet ports

Small footprint, DIN rail mountable

Modular design provides flexibility, ease of service and reduced cost for future upgrades


BACnet Device Profile

BACnet Building Controller (B-BC) Technology

ARM9 32-bit RISC CPU
64MB flash memory
32MB SDRAM memory
SD/SDIO card slot for memory expansion Real-time clock (temperature


Ultracap power backup for RTC and

LED indication of CPU and scan status Communication Ports

3 Port 10/100 Ethernet Switch

BACnet/IP and BACnet over Ethernet

protocols supported

2 RS-485 Ports (up to 76800 bps)

BACnet MS/TP, Delta LINKnet, and

Modbus® protocols supported

2 USB host ports
LCD Touchscreen (Optional)

4.3” Active Matrix Touchscreen 16-bit color, 480 x 272 resolution Device Type/Addressing

BACnet address set via software
