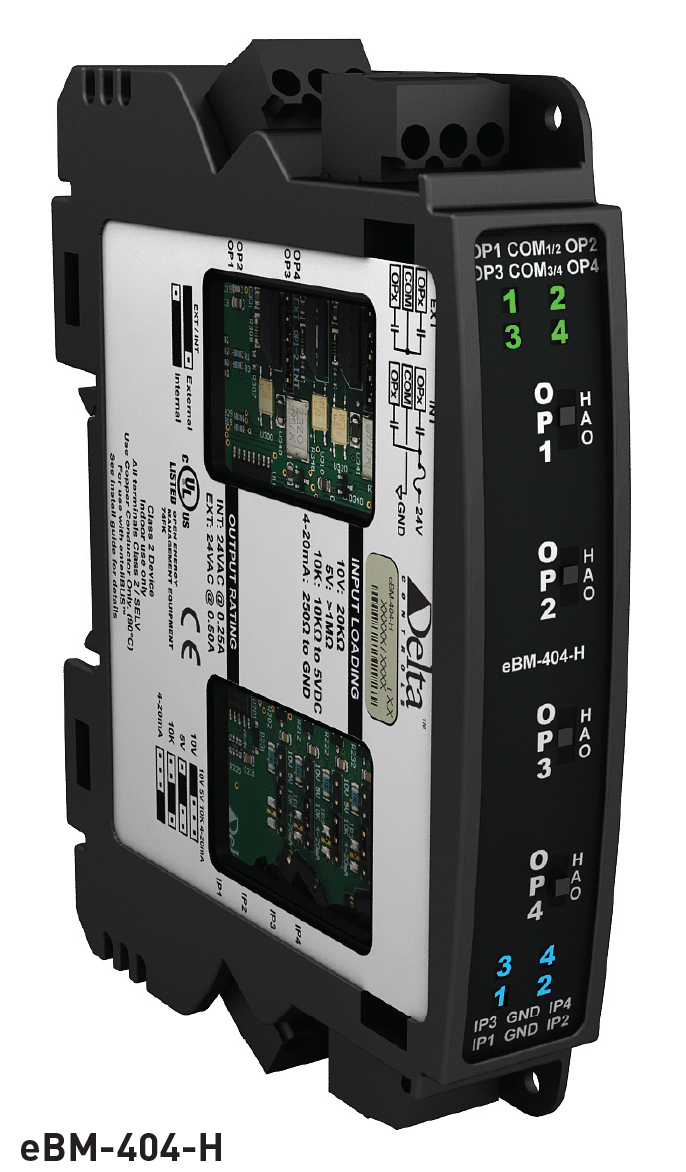

I/O Modules:: eBM-404

Description

The eBM-404 is an enteliBUSTM I/O Module with 4 universal inputs and 4 24VAC Triac outputs with optional monitored overrides. Auto detecting and hot swappable I/O Modules are selected to create the exact I/O combination needed for a given application. Should the application require the system to expand in the future, I/O expansion is easy to add.

Application

The enteliBUS Control System is made up of multiple modular components that you select to meet the exact needs of a wide range of HVAC and Access control applications.

The enteliBUS I/O Modules provide the field I/O interface for the enteliBUS Control System. With I/O Modules supporting all common control types this allows the controller I/O mix to be easily and efficiently tailored to fit any application.

Features

— Auto detecting & hot swappable

— Universal inputs (jumper configurable)

— 0-100% LED status indication of each input state.

— 3 position (HAO) monitored output override switches (optional)

— Tri color LED status indication of each output state

— Small footprint, DIN rail mountable

— Modular design provides flexibility, ease of service, and reduced cost for future upgrades/expansion

Specifications

Inputs

4 Universal inputs (12 bit), jumper

configurable for:

• 0-5 VDC, > 1MΩ loading

• 0-10 VDC, 20KΩ loading

• 10 KΩ Thermistor, 10KΩ to 5VDC

• Dry Contact (using 10 KΩ jumper setting)

• 4-20 mA, 250Ω to Gnd

LED status indication of each input:

• Black = 0% to Bright Blue = 100%

Outputs

4 Binary Triac outputs

• 24VAC at 0.5 Amp maximum per output*

• Leakage Current 100 µA, min current

25mA

• Jumper configurable for internal* or

external power

• 3 position (HAO) monitored output

override switches (optional)

*0.25A maximum per output when switching internal power

Tri color LED status indication of each

output

• Auto Off = Black

• Auto On = Green

• Manual Off = Red

• Manual On (Hand) = Yellow
