Description

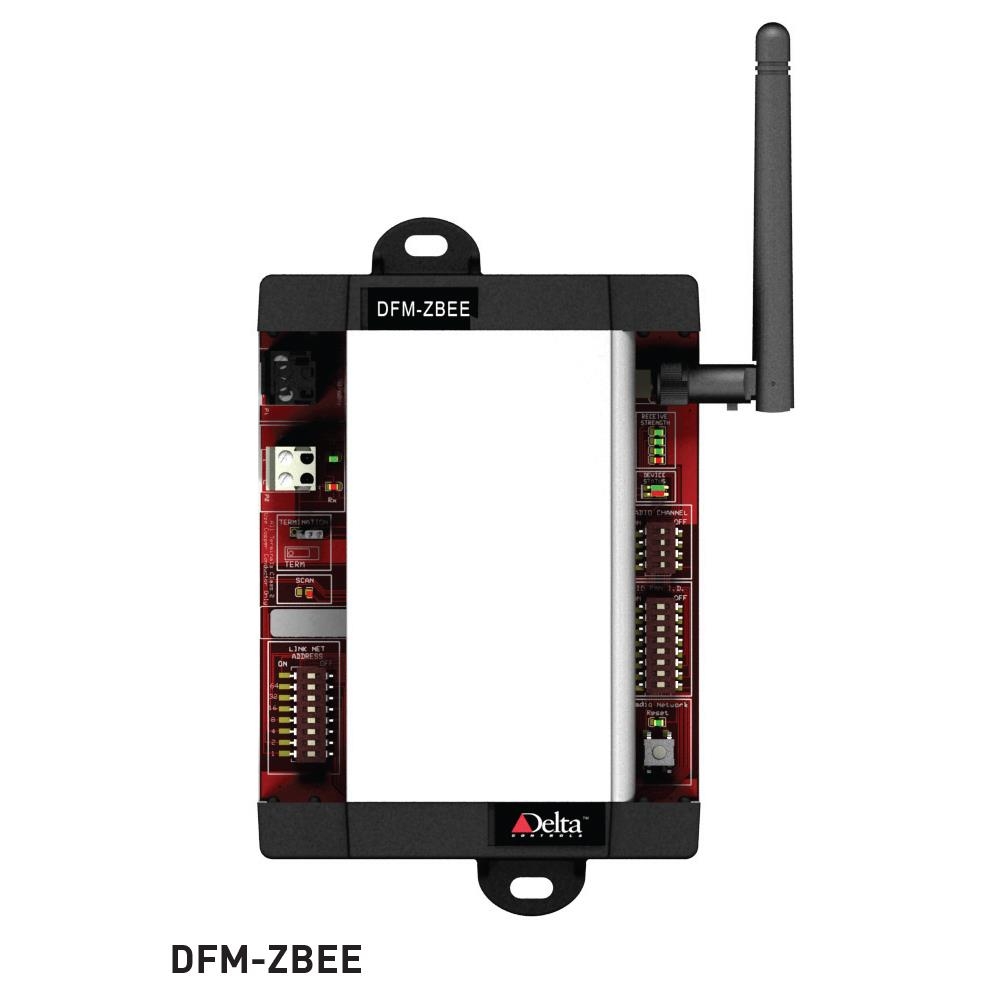

The DFM-ZBEE is a wireless interface device capable of transmitting and receiving wireless communications from enteliMESH temperature and humidity sensors. The DFM-ZBEE is a compact module, that works in conjunction with a System or Application Controller providing remote data via Delta’s LINKnet network.

Application

The DFM-ZBEE communicates with up to 8 wireless devices total including eM-RPT repeaters. It receives data such as temperature, humidity and battery condition, and then makes it available via LINKnet. It also identifies signal strength received from a sensor or repeater.

The DFM-ZBEE’s compact size allows for mounting in tight spaces and the RP-SMA connector allows for the choice of a default fixed or an optional remote antenna.

Features

— Supports communication via Delta’s LINKnet network

— Communication distances up to 30 m (100 ft) indoors

— Automatic selection of optimum channel for reliable signals

— Compact size, easy to mount

— Multiple antenna options

Specifications

Communication Ports

Delta LINKnet w 76800 bps (maximum 8

devices on LINKnet, with no more than 1

DFM-ZBEE)

ISM 2.4 GHz frequency band, wireless

digital spread spectrum 802.15.4 compliant Technology

32-bit processor LED Indicators

Scan
LINKnet Tx/Rx
Radio RSSI (received signal strength

indicator)

Device Status Associate LINKnet Address

Set via DIP switch PAN ID

Set via DIP switch Connectors

Removable screw-type terminal connectors RP-SMA antenna
