Description

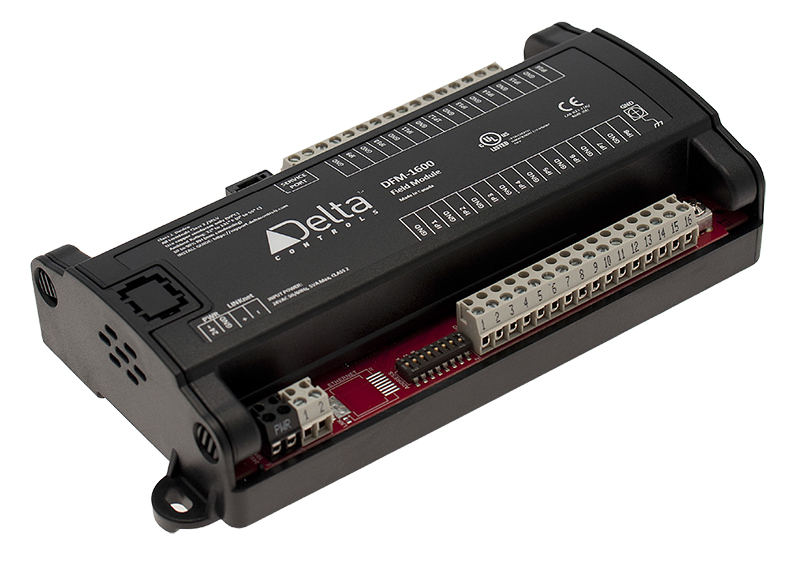

The DFM-1600 provides expandable remote inputs to Delta’s BACnet® Controllers. This field module provides 16 universal inputs and communicates on Delta’s LINKnet network. When connected to a LINKnet network, the DFM-1600 provides programmable remote input capabilities to its connected controller.

Application

The DFM-1600 suits a diverse range of application needs where additional universal inputs are required or in a case where remote I/O is needed.

Features

Allows for expansion of existing Delta Controller I/O

Up to two DFM’s can be connected to Delta System Application Controllers, expanding the I/O by 32 Universal inputs

Supports communication on LINKnet

Easy-to-mount housing using 2-screws or DIN rail

Specifications

Inputs

16 Universal inputs - 10 bit (supporting 0-5v, 0-10V, 10kΩ, 4-20mA)

Outputs

None

Technology

1MB Flash memory CPU Status LED

Device Addressing

Set via DIP switch

Communications Ports

Delta LINKnet @ 76800 bps

Connectors

Removable screw-type terminal connectors

Wiring Class

Class 2

Power

5 VA
24VAC, with LED status

Ambient

32° to 131°F (0° to 55°C)
10 - 90% RH (non-condensing)
