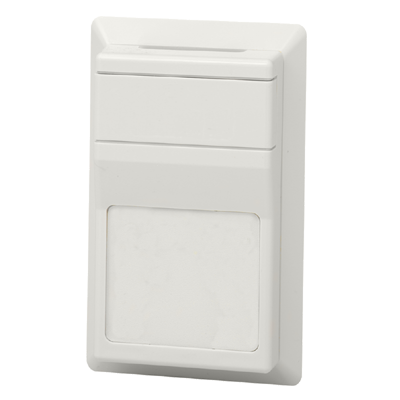

Cảm biến nhiệt độ phòng BA/10K-2-R-Z-CG

Liên hệ

Room Temperature 10 KOhm

Download Catalog

Features & Options

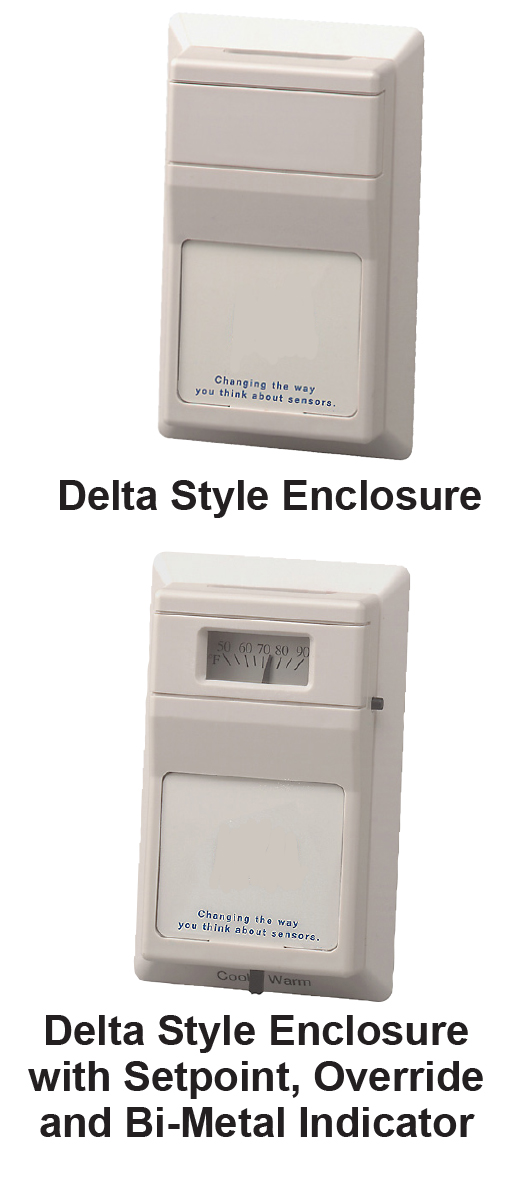

lLow Profile Delta Enclosure
lOptional Setpoint, Override or Bi-Metal Indicator lOptional Communication Jack
lOptional Test and Balance Switch
lWide Selection of Temperature Sensing Elements lLimited Lifetime Warranty

Setpoint & Legend

The optional Setpoint is a linear slidepot adjustment that comes in various ranges, and is available as Reverse or Direct Acting. An optional Setpoint Legend can be imprinted on the base of the enclosure. Common Legends include “Cool/Warm”, “65 to 80”(°F), “55 to 85”(°F), and “5 to 30”(°C). (See ordering grid on opposite page for all Legend options.)


The optional Override is a discreet momentary signal that can be configured to be compatible with any controller.

Communication Jack

Available with RJ11 (4 pin), RJ12 (6 pin), RJ45 (8 pin), RJ22 (4 pin) or a 3.5 mm phono plug style jack.

Bi-Metal Indicator

An optional Bi-Metal Indicator shows room temperature; accurate to ±1 °F. The display is protected by an acrylic plate and comes with a 50 to 90 °F or 10 to 30 °C legend.

Test and Balance Switch

A three-position slider can be provided on the back of the unit to change the sensor output as follows—the “Low” setting is “Full Cool”, “Normal” is the live sensor value, and “High” is “Full Heat”.

For detailed specifications on the individual Sensors & Transmitters, turn to the Sensors section

* All Passive Thermistors 10K Ω and smaller are CE compliant.


Environmental Operation Range:

Temperature: 32 to 122 oF (0 to 50 oC) Humidity: 0 to 95%, non-condensing


ABS Plastic

Material Rating:

UL 94, V-0

Cảm biến nhiệt độ phòng
