Features & Options
lWell-Vented, Light-Colored Sensor Guard
lFour Watertight Enclosure Styles
lWide Selection of Temperature Sensing Elements

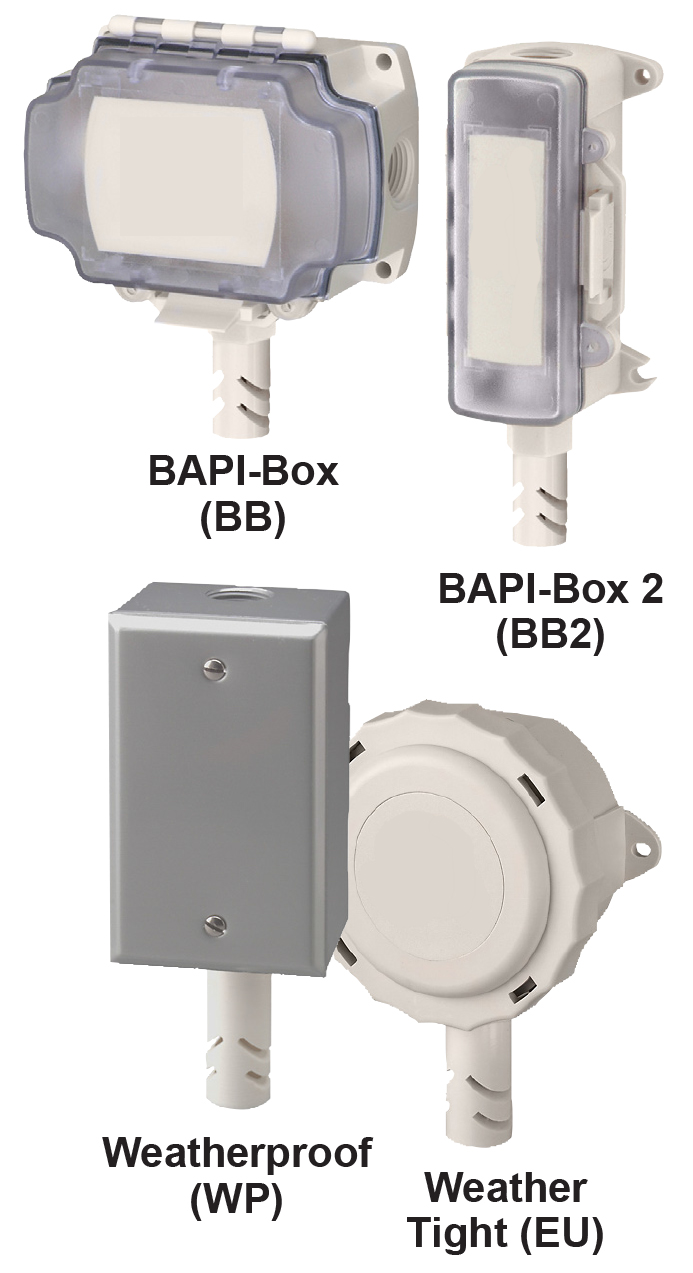

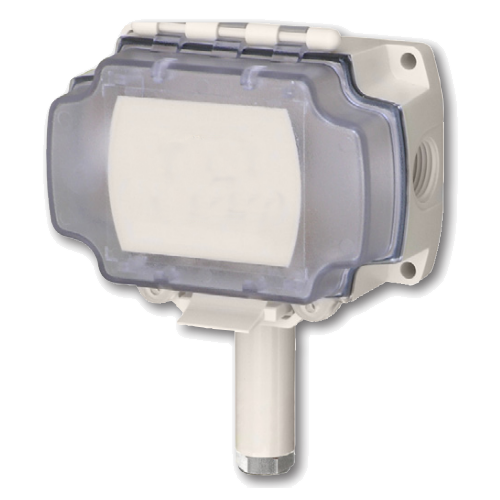

Outside Air Units are designed to be mounted outdoors. The UV-resistant plastic shield keeps the sensor out of the sunlight and allows for excellent air circulation. The units are available in a Weather Tight (EU) UV-resistant enclosure with an IP66 rating. They are also available in a cast aluminum Weatherproof (WP) enclosure which carries a NEMA 3R rating or a BAPI-Box (BB) or BAPI-Box 2 (BB2) which are made of UV-resistant polycarbonate and carry an IP66 rating. BAPI also offers optional liquid-tight ﬁttings. For a comparison of the enclosure styles, please see the App. Notes section.
All Outside Air Units have etched Teﬂon leadwires and can withstand high humidity and condensation and perform under real world conditions. This is especially important in an outside air application which can be exposed to rain, snow and large temperature swings.
EU Model: ABS Plastic, UL94, V-0
BB & BB2 Models: UV-resistant polycarbonate, UL94, V-0 WP Model: Cast Aluminum
WP Model: NEMA 3R
EU, BB & BB2 Models: IP66, NEMA 4
Environmental Operation Range:
Temperature Sensor: -40 oC to 85 oC Temperature Transmitter: -20 oC to 70 oC Humidity: 0 to 100%, non-condensing
