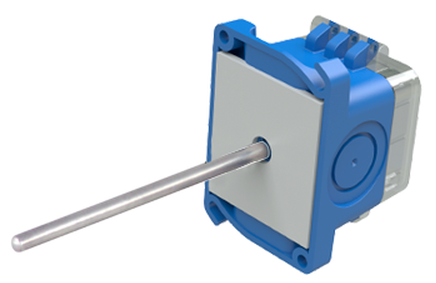

Single Point Duct Units feature closed cell foam to seal the probe insertion hole and to absorb vibration. Mounting tabs allow for easy installation directly to the wall of the duct.
Features & Options
Single Point Duct Units feature closed cell foam to seal the probe insertion hole and to absorb vibration. Mounting tabs allow for easy installation directly to the wall of the duct.
All Duct Units have etched Teflon leadwires and double encapsulated sensors to create a watertight package that can withstand high humidity and condensation and perform under
real world conditions. Duct Units have probe lengths from 2” to 18” to accommodate most duct shapes and sizes. Custom probe lengths are also available.Duct Units come standard with a 2”x4” steel J-Box but are also available with no box or four styles of enclosure: the metal Weatherproof, the UV-resistant polycarbonate BAPI-Box and BAPI-Box 2 or nylon & ABS plastic BAPI-Box 4.
Specifications
Enclosure Material:
J-Box Model: Galv. Steel
WP Model: Cast Aluminum
BB & BB2: Polycarbonate, UL94, V-0
BB4 Model: Nylon & Plastic, UL94, V-0
Enclosure Rating:
J-Box Model: IP20, NEMA 1
BB4 Model: IP10
(IP44 with Knockout Plug)
WP Model: NEMA 3R
BB & BB2 Models: IP66, NEMA 4
Environmental Operation Range:
Temp. Sensor: -40 oC to 105 oC
Temp. Transmitter: -20 oC to 70 oC
Humidity: 0 to 100%, non-condensing
