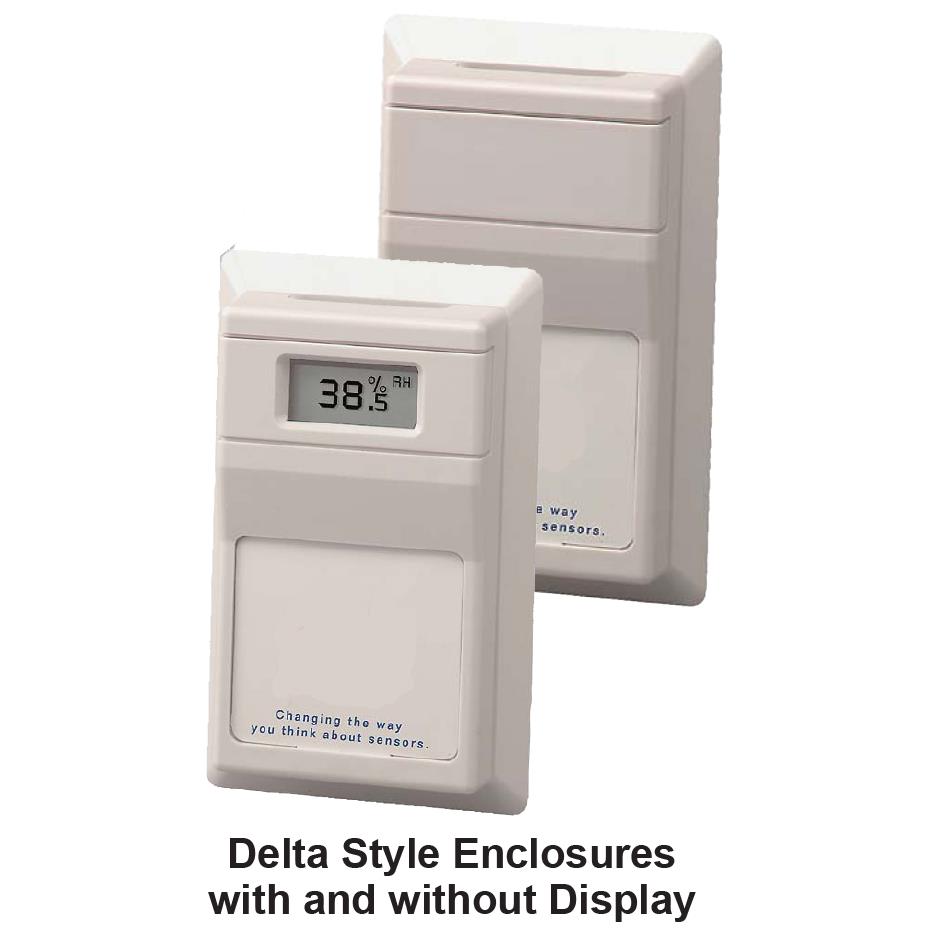

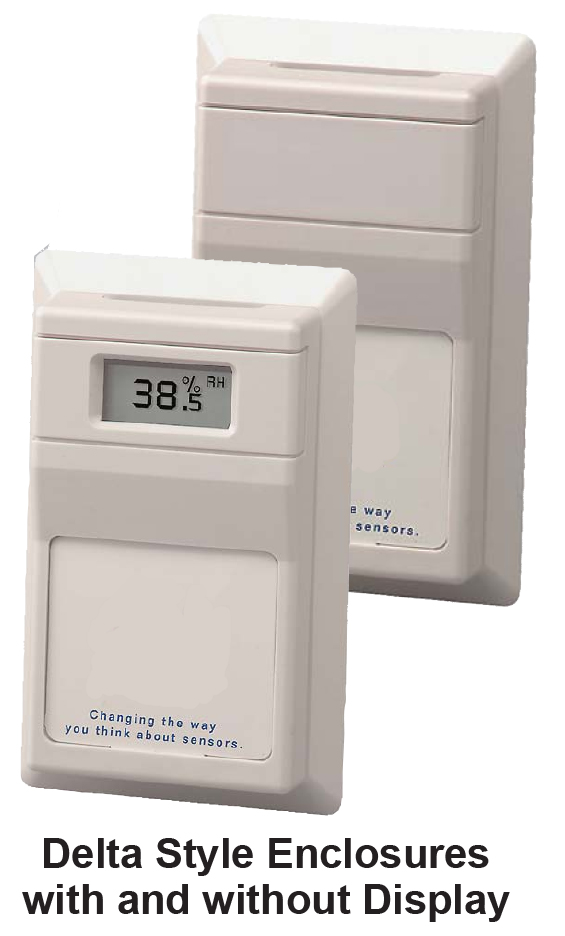

The Delta Style room units are available as Humidity Only sensors or as ombination temperature and humidity sensors.
Features & Options
lLow Profile Delta Style Enclosure
lHumidity Only or Temp./Humidity Combo
lOptional Display
l2% and 3% RH Accuracies
lOptional Communications Jack
lUser Adjustable Toggle Rate Between Temperature and Humidity lWide Selection of Temperature Sensing Elements
lFull-range Temperature Compensation of RH Signal
lTwo Year Warranty
The Delta Style room units are available as Humidity Only sensors or as ombination temperature and humidity sensors. The Delta Style enclosure features an optional display with a user adjustable toggle rate between humidity and temperature and can display in either °C or °F.
The unit is available with the entire line of BAPI temperature sensors. If a temperature transmitter and humidity transmitter are desired, then see the “X-Combo” Unit on pages B12-13 of this section.
For detailed specs on the individual Sensors & Transmitters, turn to the “Sensors” section.
Specifications
Power: 10 to 35 VDC (0 - 5 VDC or 4 - 20 mA Outputs)
15 to 40 VDC (0 - 10 VDC Output)
12 to 24 VAC (0 - 5 VDC Output)
15 to 28 VAC (0 - 10 VDC Output)
Note: If AC power is used, it must be shielded from the signal wiring Power Consumption:
22 mA max. DC (0 - 5 VDC or 4 - 20 mA Outputs) 6 mA max DC (0 - 10 VDC Output)
0.53 VA max. AC (0 - 5 VDC Output)
0.14 VA max. AC (0 -10 VDC Output)
Sensing Elements:
Temperature - Thermistor, RTD or Semiconductor
Humidity - Capacitive Type, ±2% or ±3% RH
RH Calb. Adjustment: ±5% POT
Wiring: 2 to 3 pair of 16 to 22 AWG*
Mounting: Standard 2”x4” J-box or drywall mount - screws provided Environmental Operation Range:
Temperature: 32 to 122 oF (0 to 50 oC)
Humidity: 5 to 95%, non-condensing
Material: ABS Plastic
Material Rating: UL 94V-HB
