Description

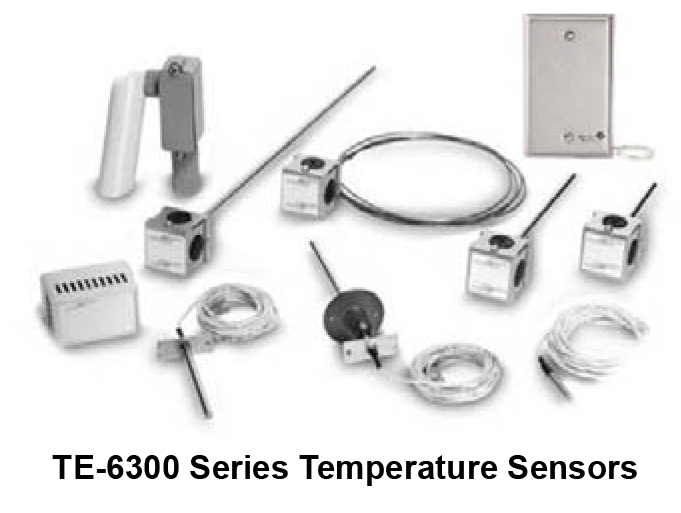

The TE-6300 Temperature Sensor line provides economical solutions for a wide variety of temperature sensing needs, including wall-mount, outdoor-air, duct, strap-mount, well-insertion, duct-averaging, and Variable Air Volume (VAV) flange-mount duct-probe applications. The TE-6300 line offers both a metal and a plastic enclosure for the most popular models.

Sensors are available in the following types:

•1k ohm thin-film nickel

•1k ohm nickel averaging

•1k ohm thin-film platinum

•100 ohm platinum equivalent averaging

•1k ohm platinum equivalent averaging

•2.2k (2,252) ohm thermistor

•10k ohm thermistor, Johnson Controls® Type II

Each sensor is packaged with the necessary mounting accessories to maximize ordering and installation ease and reduce both commissioning time and cost.

Refer to the TE-6300 Temperature Sensors Product Bulletin (LIT-216320) for important product application information.

Features

• full line of versatile sensors — supports all your temperature sensing needs from a single supplier: wall mount, outdoor air, duct probe, duct averaging, strap-mount, well insertion, and flange mount duct probe

• single assembly ordering — simplifies ordering; provides a complete assembly in one box

• models featuring an integral NPT Adaptor — increase sensor connection strength, which eliminates the need for a special adaptor

• models with a stainless steel sensor probe — protect the sensor while increasing corrosion resistance

• metal enclosure (TE-63xxM Models only) — meets plenum requirements

• models featuring a retainer for the sensor holder — allow you to lock the sensor holder into the conduit box

• brushed stainless steel mounting plate — offers a durable, aesthetically-pleasing design

• low profile flush mount design — provides a tamper-proof installation ideally suited for schools, sporting complexes, retailers, prisons, and more

All TE-6300 series sensors are two-wire, passive, resistance output devices.

TE-63xxA Models

The TE-63xxA (adjustable length) models:

•provide a thermoplastic mounting flange and gland nut to adjust the length of the probe

•include two hex-head self-drilling screws for mounting

•come equipped with a 10 ft (3 m) plenum-rated cable with 1/4 in. (6.35 mm) female insulated quick-connect terminations on leads

TE-63xxF Models

The TE-63xxF (flush mount) models:

•provide a low profile when installed in an electrical box

•feature thermally isolated sensor from the wall with a foam pad

•offer a rugged stainless steel cover

•provide 22 AWG lead wires with low voltage installation

TE-63xxM Models

The TE-63xxM (metal enclosure) models:

•come with a corrosion-protected steel enclosure with a 0.88 in. (22 mm) hole for a 1/2 in. (12.7 mm) conduit fitting

•include two hex-head self-drilling screws for mounting the duct and duct averaging models

•offer (well models only) either a direct mount or 1/2-14 NPT threaded well sensor holder for mounting in TE-6300W Series thermal wells (Order the thermal well separately.)

•provide optional well sensor holders (order separately) to mount duct models in thermal wells.

•meet UL 1995 plenum use requirements

•offer optional accessory kit (order separately) to replace plastic hole plug and wiring bushing to meet International Mechanical Code (IMC) requirements

TE-63xxP Models

The TE-63xxP (plastic enclosure) models:

•provide a thermoplastic conduit box with 1/2-14 NPT female thread for connecting to conduit

•provide aluminum mounting plate and 1/2-14 NPT threaded hub mounting options for the duct and duct averaging models

•use the 1/2-14 NPT female thread to mount the Outdoor Air models directly to ridged conduit

•provide optional sensor holders (order separately) to mount duct models in thermal wells

•offer an optional accessory metal cover kit (order separately) to replace the plastic cover to meet UL 1995 plenum use requirements

•include a replaceable sensing probe on duct probe, outdoor air, and well insertion models
