Cảm biến độ ẩm ống gió

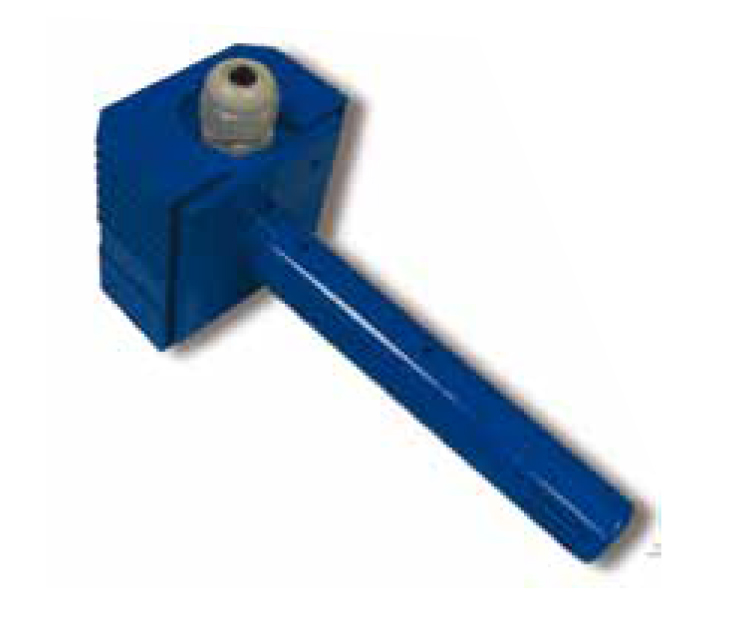

The HT-9000 Series measures humidity over the entire range
of 0 to 100% RH (non condensing) and has a wide operating temperature range. Its fast response, reliable long-term performance makes this transmitter well suited for refrigeration and HVAC installations.

This range also includes models with an integrated temperature sensing elements.

Features

z Power Supply 12...30 VDC / 24 VAC

z Humidity Range 0...100% (non condensing)

z Humidity Output 0...10 VDC

z Humidity Accuracy 4% RH from 10 to 90% RH

z Temperature Outputs 0...10 VDC, NTC K2, Pt 100, Pt 1000, A99

z Duct probes lengths 153 mm and 230 mm

z Protection class: IP30
