Turbine Flow Meters

INSTALLATION HARDWARE REFERENCE GUIDE FOR INSERTION TURBINE FLOW METERS

All ONICON insertion type meters can be installed and removed via a 1” or larger full port ball valve without system shutdown. The terms “Standard” and “Hot Tap” refer to the installation method of the isolation valve kit only.

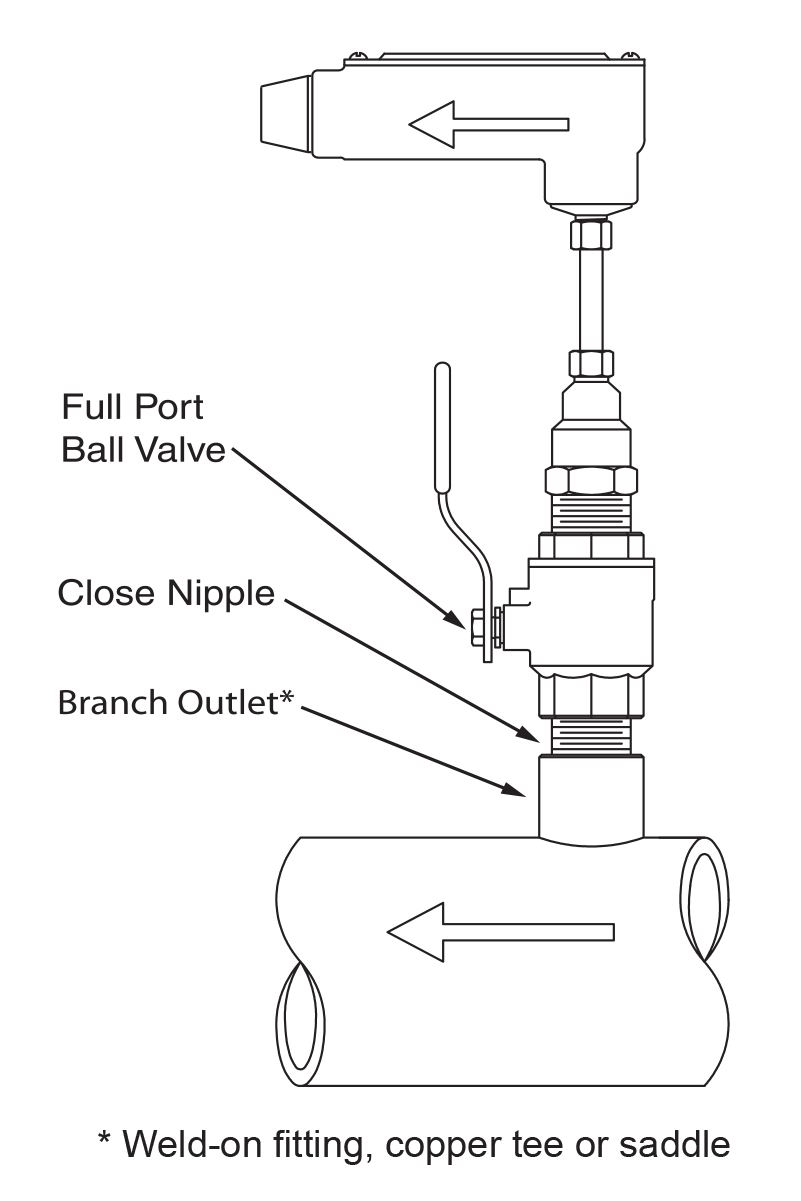

Standard Installation Hardware: For new construction or scheduled shutdown. Once kit is installed, the flow meter

can be installed or removed without system shutdown.

Hot Tap Installation Hardware: For applications which require the access hole in the pipe to be drilled through the valve using a wet tap drilling machine while the hydronic system is pressurized and operating.

The most commonly ordered installation kits are listed below. For a complete list of installation kits offered by ONICON refer to the next two pages.
