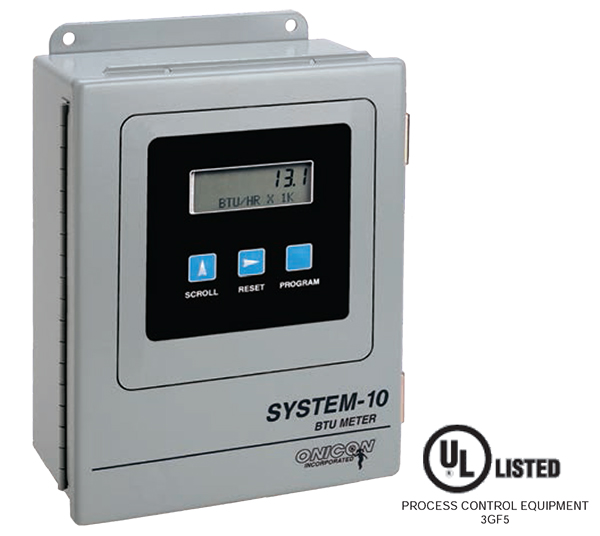

0569-5-System-10-BAC-IP

Liên hệ
FEATURES BACnet Compatible Serial Communications - Provides complete energy, flow and temperature data to the control system through a single BACnet/IP network connection, reducing installation costs. Simple Installation and Commissioning - Factory programmed and ready for use upon delivery. All process data...

FEATURES

BACnet Compatible Serial Communications - Provides complete energy, flow and temperature data to the control system through a single BACnet/IP network connection, reducing installation costs.

Simple Installation and Commissioning - Factory programmed and ready for use upon delivery. All process data and programming functions are accessible via front panel display and keypad.

Single Source Responsibility - One manufacturer is responsible for every aspect of the energy measurement process ensuring component compatibility and overall system accuracy.

N.I.S.T. Traceable Calibration with Certification - Each Btu measurement system is individually calibrated using application specific flow and temperature data and is provided with calibration certificates.

Precision Solid State Temperature Sensors - Custom calibrated and matched to an accuracy better than ±0.15° F over calibrated range.

Highly Accurate Flow Meters – ONICON offers a wide variety of insertion and inline type flow measurement technologies including turbine, electromagnetic and vortex sensing. Each type offers unique advantages depending on the application. All ONICON flow meters are individually wet calibrated and designed to operate over a wide flow velocity range with accuracies ranging from ±0.2% to ±2.0% of rate depending on the model.

Complete Installation Package - All mechanical installation hardware, color coded interconnecting cabling and installation instructions are provided to ensure error-free installation and accurate system performance.

0569-5-System-10-BAC-IP

DESCRIPTION

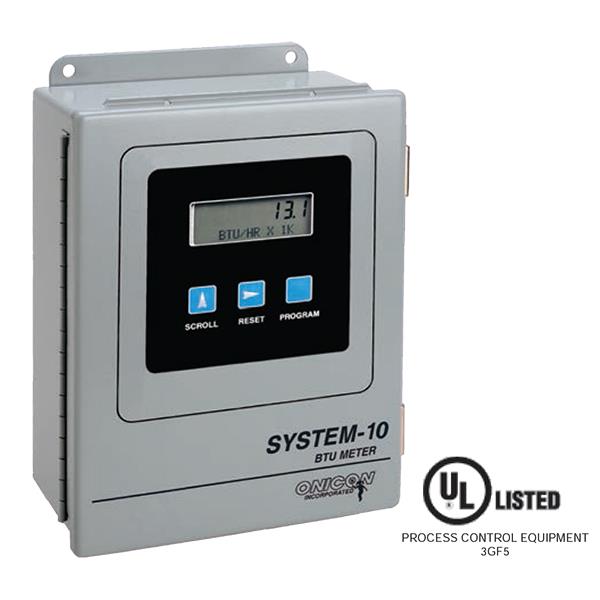

The System-10 BTU-BAC Meter provides highly accurate thermal energy measurement in chilled water, hot water and condenser water systems based on signal inputs
from two matched temperature sensors (included) and any of ONICON’s insertion or inline flow meters (ordered separately). The System-10-BAC-IP provides energy flow and temperature data on a local alphanumeric display and to the BACnet/IP network via the BACnet/IP

communications driver. An optional auxiliary input is also

available to totalize pulses from another device and

communicates the total directly to the BACnet/IP network.

APPLICATIONS

Chilled water, hot water and condenser water systems for:

• Commercial office tenant billing

• Central plant monitoring

• University campus monitoring

• Institutional energy cost allocation

• Performance/efficiency evaluations

• Performance contracting energy monitoring

ORDERING INFORMATION

The System-10 BTU Meter is sold complete with temperature sensors. Thermowell installation kits and flow meters are purchased separately.
