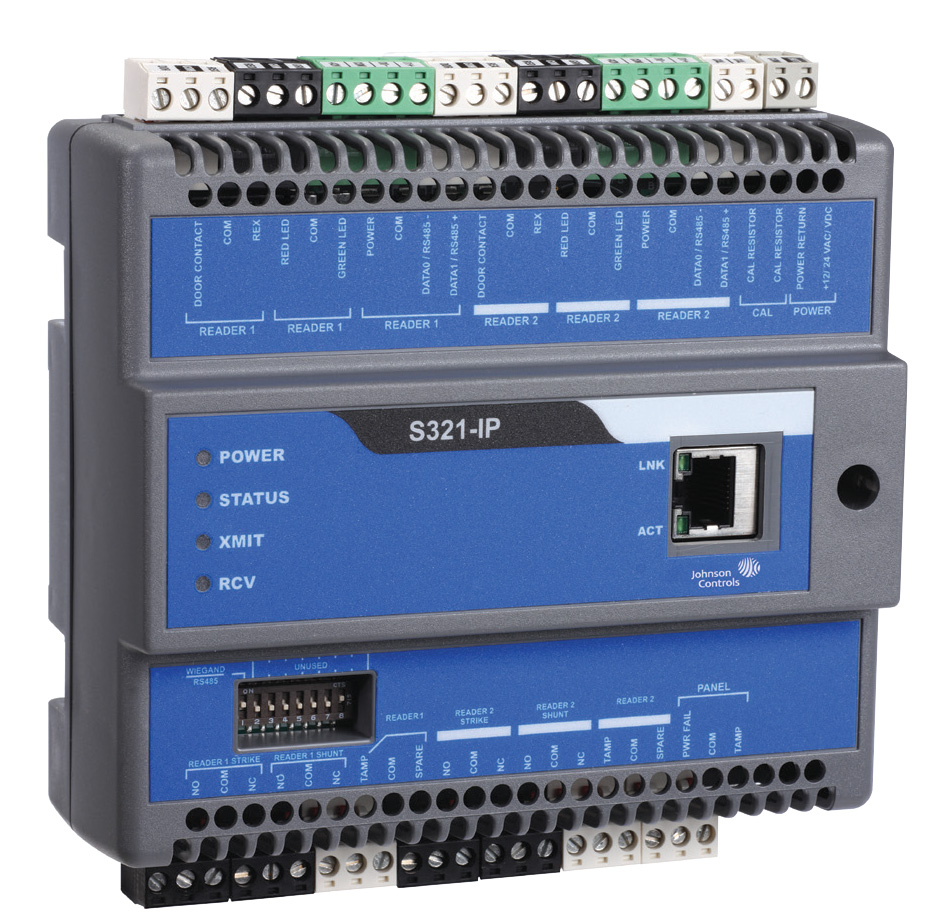

S321IP

Easy, flexible installation
Can be mounted on a flat surface, DIN rail, or specified UL-listed enclosure. Configured to use Category-5 network cables with a standard RJ-45 connector.

Door Operations
The S321-IP provides the following connections when configured to control one or two doors:

Inputs
Request to exit device
Door position contact
Reader (PIN, card or biometric)

Outputs
Strike Relay (Form C) Shunt Relay (Form C)

Interface Requirements
The S321-IP requires a Category-5 network cable with a standard RJ-45 connector. The S321-IP can provide

12 VDC to the reader.

Reader Compatibility
Most card readers are compatible with the S321-IP. Hands-free, proximity, Wiegand, magnetic stripe and bar code technologies are all supported.

Port Enable/Disable
The S321-IP can function as a reader and/or I/O interface for up to two doors. Disabling or enabling the reader or I/O capability for either door allows the device to act in
a wider variety of configurations.
