Description

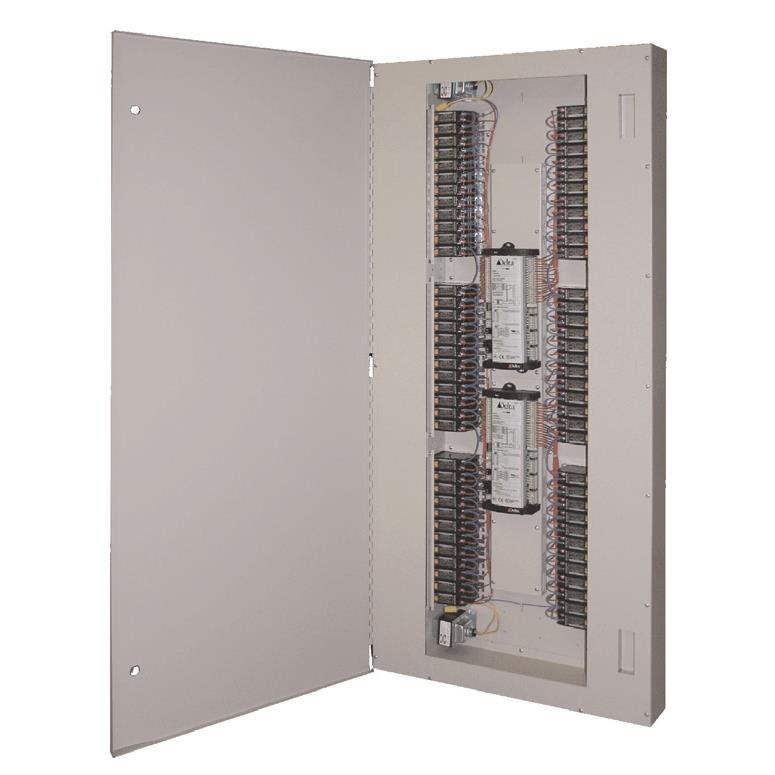

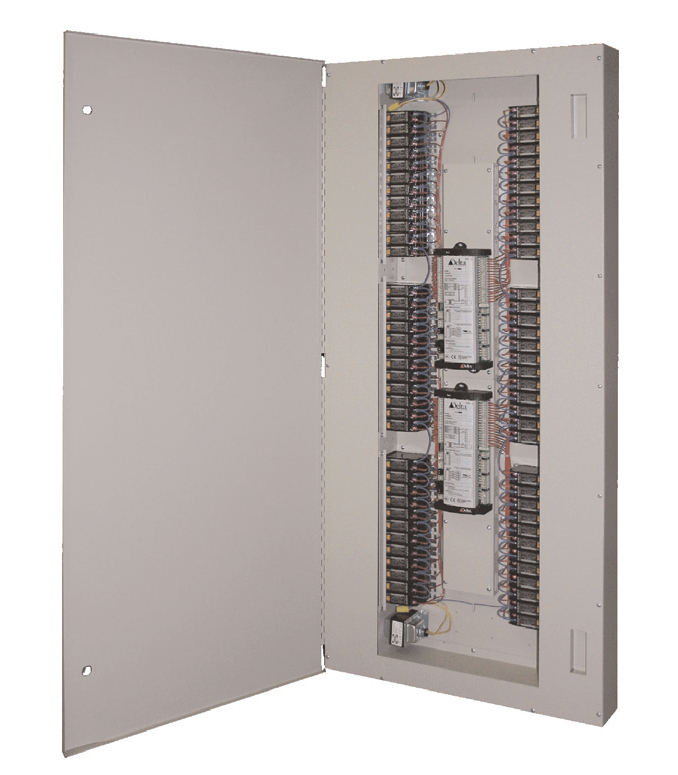

The Delta Controls DLS-E12/36/72 Lighting Cabinets are designed for use with the DLC-P series controllers and with the Panasonic WR-xxx series relays. Delta Controls offers three cabinet size options; each comprised of an enclosure, interior and cover. Cover options include a lockable hinged door with voltage barrier or a screwed cover, both available in either flush or surface mount styles.

Application
The DLS Lighting Cabinets are factory pre-wired and tested to reduce field installation costs. The flexible cabinet sizes can be used in installations ranging from smaller distributed lighting control solutions to large central installations.

The flexible design of these lighting cabinets allow the field installation to determine how the interior and doors are mounted to the enclosure. Low voltage wires can be accessed from either the top or bottom, and the doors can be installed for left or right opening.

Features
—12, 36 and 72 relay cabinet sizes

—Configurable barriers to allow from 1 to maximum cabinet relay capacity

—Enclosure separate from interior allows wires to be pulled before the relays and controller are installed

—Doors provide access to the low voltage area while providing a barrier to the high voltage area

—Large wire way allow for the running of high voltage wires from one side to the other on the 36 or 72 relay size cabinets

—Controller mounted on raised rails to conceal low voltage switch wiring

—12 relay size cabinet can easily be flush mounted between standard 16 inch studs

—Optional high voltage area barriers allow for multiple line voltages in each cabinet

Specifications

Dimensions DLLSS--EE1122--xxxx

14 x 20.4 x 4 in.

(35.5 x 51.8 x 10.1 cm)

15.75 lb. (6.69 kg) without relays

19.58 lb. (8.9 kg) full capacity

DLLSS--EE3366--xxxx

22 x 28 x 4 in.

(55.9 x 71.1 x 10.1 cm)
44 lb. (20 kg) without relays

58.6 lb. (26.6 kg) full capacity

DLLSS--EE7722--xxxx

22 x 50 x 4 in.

(55.9 x 127 x 10.1 cm)
79 lb. (35.7 kg) without relays 107.7 lb. (48.8 kg) full capacity

Color
ANSI/ASA 61 Grey

Enclosure
16 gauge steel

Power Transformer

Primary: 120, 277, 347 VAC Secondary: 24 VAC, 50VA

Wiring
High Voltage: 14 gauge minimum Low Voltage: 18 gauge

Ambient
32º to 131ºF (0º to 55ºC)

10 to 90% RH (non-condensing)

Listings UL Listed

C-UL Listed
