Description

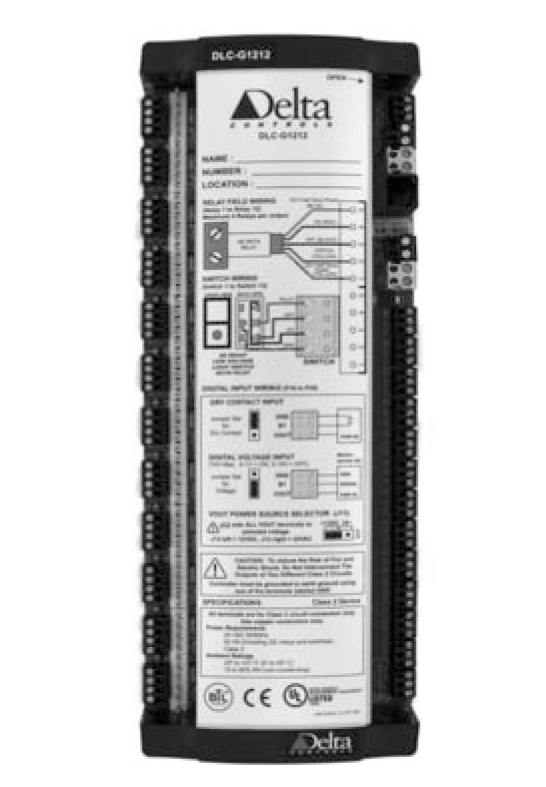

The DLC-G1212 is a fully programmable, Native BACnet™ Advanced Application Controller that communicates on a BACnet MS/TP RS-485 LAN. This controller is designed for lighting applications and has 12 GE lighting relay outputs per controller. The controller also supports up to 12 Delta BACstats connected on its LINKnet subnetwork.

Application

The DLC-G1212 is suitable for controlling up to 12

lighting zones, switching a maximum of 48 GE lighting

relays.

The controller can be mounted in various GE relay

enclosures for both new and retrofit construction

projects.

The DLC-G1212 is fully programmable: GCL+

programs and BACnet objects can be created and or

modified for specific lighting applications.

Features

—Native BACnet firmware
—BACnet MS/TP communication
—Supports switching a maximum of 48 RR7P or RR9P

GE Lighting Relays (4 parallel relays per output) per

controller
—Supports a Subnet of up to 12 BACstats (DNS-

14/24)
—Supports a Master Override Switch with built-in

sequencing
—Fully programmable in GCL+
—Application database can be loaded over the network —Controller firmware can be flash loaded over the

network
—Supports Modbus capability via flash loading in the

field
—Supports flash loading Modbus upgrades via

hardware key
—Easy-to-mount housing
—External binary inputs for motion detectors


Specifications

BACnet Device Profile
BACnet Advanced Application Controller (B-AAC)

Inputs
12 external binary inputs with LED status indication

12 internal inputs for relay status built into relay connector

Outputs

12 GE lighting outputs

RR7P 3-wire relays (control only, no status)

RR9P 5-wire relays (control and status, including LED indication)

Relay Switches
12 terminals for wiring local GE switches directly to relay output

Sweeper Ports
Sweeper input port master override or sweeper input port with command sequencer

Sweeper output port with LED status indication, which connects to another lighting controller’s sweeper input port to continue the sweep sequence

Communications Ports
Main LAN (NET1) with LED status indication BACnet MS/TP @ 9600, 19200, 38400, 76800 bps (default) (maximum of 99 devices per BACnet MS/TP segment)

SubLAN (NET2) with LED status indication Delta LINKNet @ 76800 bps (maximum 12 network sensors on LINKnet)
