Description

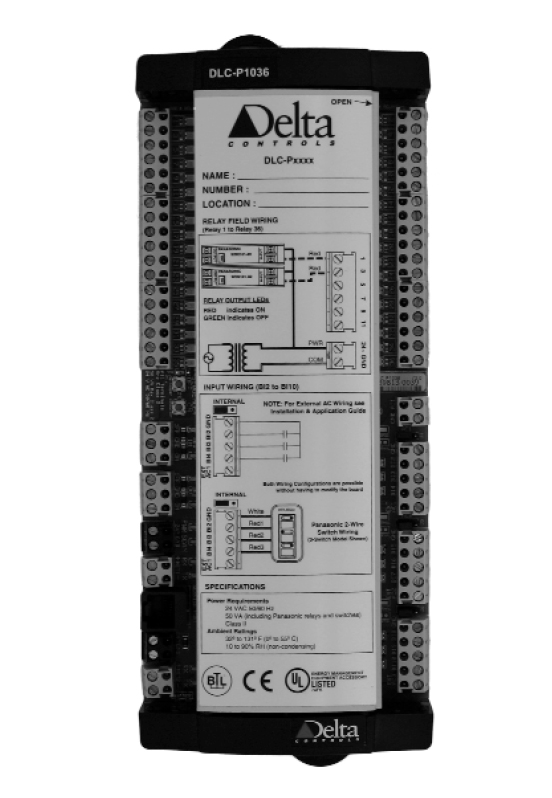

The DLC-Pxxxx series are fully programmable, Native BACnetÆ Advanced Application Controllers that communicate on Twisted-Pair Ethernet 10-BaseT using BACnet IP and BACnet over Ethernet, or on a BACnet MS/TP RS-485 LAN. Specifically designed for lighting applications, this controller has up to 36 outputs and supports up to 4 industry proven Panasonic lighting relays per output. It also supports BACstats connected on its LINKnet subnetwork for network switches or field modules.

Application

The DLC-Pxxxx is suitable for controlling up to 36 light

ing zones, switching a maximum of 144 Panasonic

lighting relays.

The controller can be mounted in various Panasonic

relay enclosures for both new and retrofit construction

projects.

The DLC-Pxxxx is fully programmable: GCL+ programs

and BACnet objects can be created and/or modified

for specific lighting applications.

Features

—Native BACnet Firmware
—BACnet IP and BACnet over Ethernet communica

tions
—Supports switching a maximum of 4 Panasonic

relays per relay output
—Software monitoring of switch activity —Supports a subnet of up to 12 BACstats
—Up to 9 Panasonic relay switches or dry contact

master inputs
—One universal analog input
—Individual output status indication via LED —Supports a master override switch with built-in

sequencing
—Fully programmable in GCL+
—Application database and controller firmware can be

flash loaded over the network —Easy-to-mount housing

Specifications

BACnet Device Profile

BACnet Advanced Application Controller (B-AAC)

Inputs

6 to 9 Binary inputs (Panasonic 2-wire relay switch or dry contact inputs with status feedback & LED status indication)

1 Universal input, with LED status indication

Outputs

4, 8, 12, 24 or 36 Panasonic lighting relays

Outputs
(maximum 4 relays or 6 switches per output)

Uses Panasonic WR-61xx relays

Sweeper Ports

Sweeper input port with LED status indication master override or sweeper input port, with command sequencer

Sweeper output port with LED status indication connects to another lighting controller’s sweeper input port to continue the sweeper sequence

On-board Overrides

ON scan button provides ALL ON override control

OFF scan button provides ALL OFF override control

Communications Port

Twisted-Pair Ethernet
(10-BaseT) @ 10 MB, BACnet IP, BACnet over Ethernet

Main LAN (NET1)

BACnet MS/TP @ 9600, 19200, 38400 or 76800 bps(default) (maximum of 99 devices per BACnet MS/TP segment)
