Description

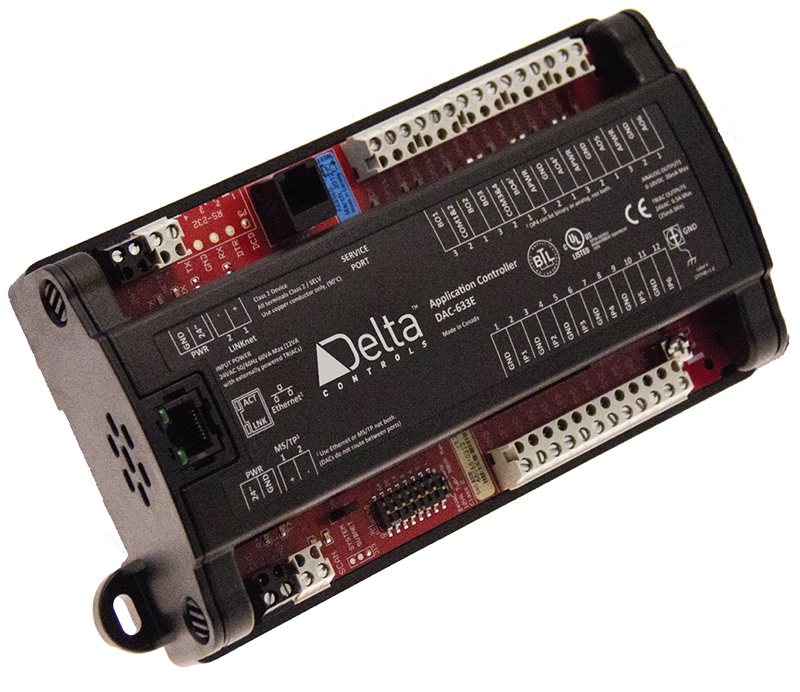

The DAC-633 is a fully programmable, Native BACnet™ Advanced Application Controller that communicates on Twisted-Pair Ethernet 10-BaseT using BACnet IP and BACnet over Ethernet, or on an RS-485 LAN using the BACnet MS/TP protocol. It is designed for a wide-range of applications that have small local I/O requirements. It also supports BACstats and other Delta LINKnet devices.

Application

The DAC-633 is suitable for controlling various packaged units and equipment with small I/O requirements such as Fan Coil units, Unit Ventilators, Heat Pumps, and small Boilers or Chillers.

The fully programmable DAC-633 can be tailored to specific applications by creating and modifying BACnet objects and GCL+ programs.

Features

— Native BACnet firmware

— Fully programmable in GCL+

— BACnet MS/TP communications (DAC-633), BACnet/IP and BACnet Ethernet (DAC-633E)

— Super Capacitor for real-time clock and SRAM backup (requires no maintenance) on DAC-633E

— Supports 6 BACstat network sensors on LINKnet for room sensing and control or 2 Delta Field Modules on LINKnet for I/O expansion

— Actuator power terminal (24VAC) for each analog output (can be powered internally or from an auxiliary transformer)

— Firmware upgrade and database load/ save over the network

— Supports Modbus capability via flash loading in the field

— Service port

— Screw or DIN rail mountable

Specifications

BACnet Device Profile

BACnet Advanced Application Controller (B-AAC)

Inputs

6 Universal inputs - 10 bit (supporting 0-5v, 0-10v, 10kΩ, 4-20mA)

Outputs

3 Binary TRIAC outputs (jumper configured for internal or external power)

3 Analog outputs (0-10v)

LED status indication of each output

Technology

DAC-633
32-bit processor
1 MB Flash memory
127 KB SRAM memory for database LED indication of CPU and SCAN status

DAC-633E 32-bit processor

2 MB Flash memory
319 KB SRAM memory for database LED indication of CPU and SCAN status

Real-time clock
Super Capacitor for 72-hour backup of realtime clock and SRAM

Device Addressing

Set via DIP switch and jumpers, or software setup
