Description

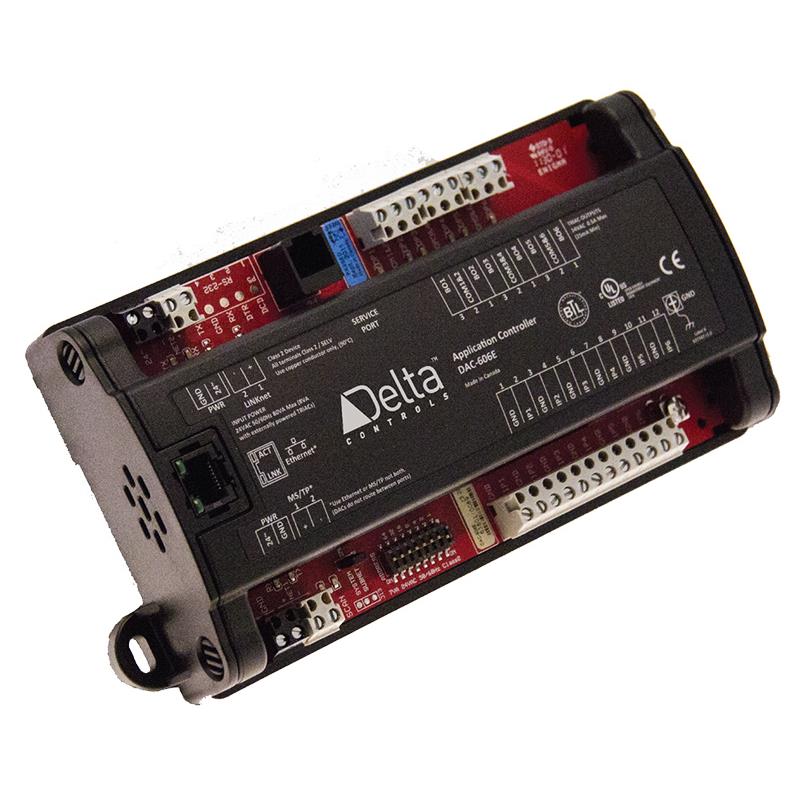

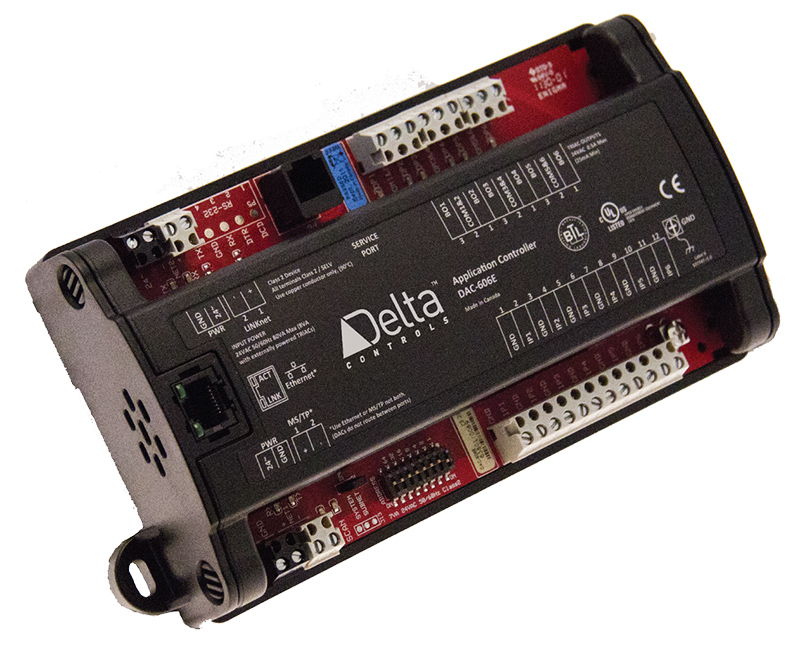

The DAC-606 is a fully programmable, Native BACnet™ Advanced Application Controller that either communicates on Twisted-Pair Ethernet 10-BaseT using BACnet IP and BACnet over Ethernet or an RS-485 LAN using the BACnet MS/TP protocol. It is designed for a wide-range of applications that have small local I/O requirements. It also supports BACstats and other Delta LINKnet devices.

Application

The DAC-606 is suitable for controlling various packaged units and equipment with small I/O requirements such as Fan Coil units, Unit Ventilators, Heat Pumps, and small Boilers or Chillers.

The fully programmable DAC-606 can be tailored to specific applications by creating and modifying BACnet objects and GCL+

programs.

Features

— Native BACnet firmware

— Fully programmable in GCL+

— BACnet MS/TP communications (DAC-606), BACnet/IP and BACnet Ethernet (DAC-606E)

— Super Capacitor for real-time clock an SRAM backup (requires no maintenance) on DAC-606E

— Supports 6 BACstat network sensors on LINKnet for room sensing and control or 2 Delta Field Modules on LINKnet for I/O expansion

— Firmware upgrade and database load/ save over the network

— Supports Modbus capability via flash loading in the field

— Service port

— Screw or DIN rail mountable

Specifications

BACnet Device Profile

BACnet Advanced Application Controller (B-AAC)

Inputs

6 Universal inputs - 10 bit (supporting 0-5v, 0-10v, 10kΩ, 4-20mA)

Outputs

6 Binary TRIAC outputs (jumper configured for internal or external power)

LED status indication of each output

Technology

DAC-606
32-bit processor
1 MB Flash memory
127 KB SRAM memory for database LED indication of CPU and SCAN status

DAC-606E
32-bit processor
2MB Flash memory
319 KB SRAM memory for database LED indication of CPU and SCAN status Super Capacitor for 72-hour backup of real-time clock and SRAM

Device Addressing

Software addressed
