FM Approved, UL 464, UL 1971& BFP Listed
Nominal voltage 24VDC
Units have ﬁeld selectable candela options of 15, 30, 60, 75, and 110 candela
Super-SlideTM Bracket - Ease of Supervision Testing
CheckmateTM - Instant Voltage Veriﬁcation
Unit Dimensions: 5” high x 4.5” wide x 2.5” deep
Synchronize strobe and/or horn with VES Series Control Module
Prewire entire system, then install signals
Lower installation and operating costs
Input terminals 12 to 18 AWG
Switch selection for high or low dBA
Switch for chime, whoop, mechanical and 2400Hz tone
Tamperproof re-entrant grill
Switch for continuous or temporal 3 (not available on whoop tone)
Surface mount with the VF4005 (VES Surface Mount Box)
Silence horn while strobes remain ﬂashing
Wide voltage range 16-33VDC or FWR (24VDC units)

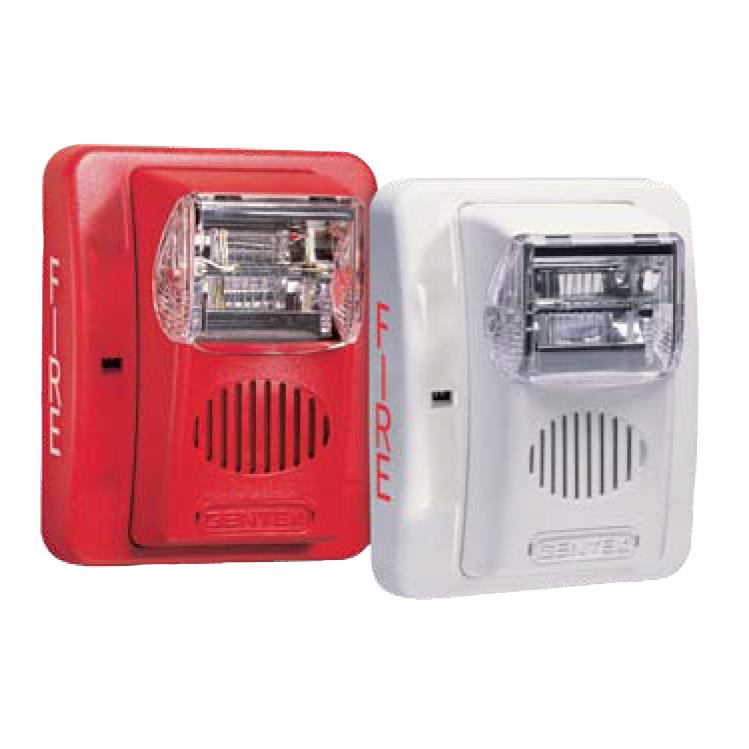

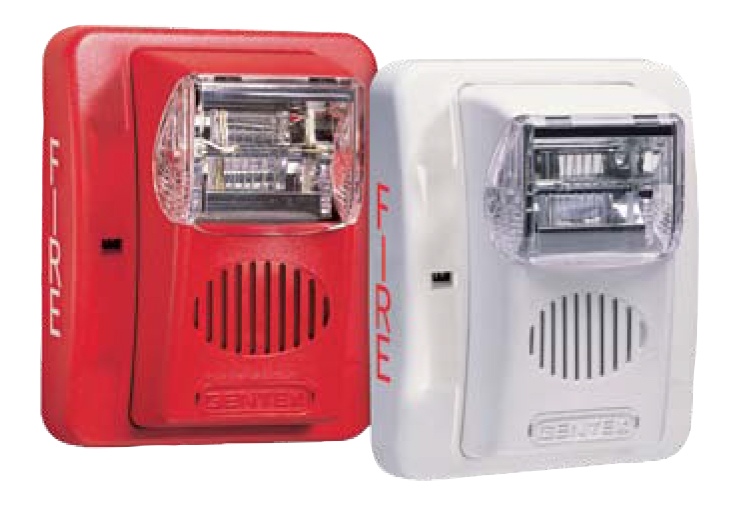

The VES Signal Series is a low proﬁle strobe and horn/strobe combination that oﬀers dependable audible and visual alarms and the lowest current available.
The VES Series 24VDC oﬀers tamperproof ﬁeld selectable candela options of 15, 30, 60, 75, and 110 candela.
The VES Series horn oﬀers a continuous or synchable temporal three in 2400Hz and mechanical tone, a chime and whoop tone. All tones are easy for the professional to change in the ﬁeld by using switches.
The VES Series has a minimal operation current and has a minimum ﬂash rate of 1Hz regardless of input voltage.
The VES Series is shipped with the standard 4” metal mounting plate which incorporates the popular Super-SlideTM feature that allows the installer to easily test for supervision. The product also features a locking mechanism which secures the product to the bracket without any screws showing.
The VES also features the CheckmateTM -
Instant Voltage Veriﬁcation feature which allows the installer to check the voltage drop draw and match it to the blueprint.
The VES Series appliances are UL 464 and UL 1971, listed for use with ﬁre protective systems and are warranted for three years from date of purchase.
