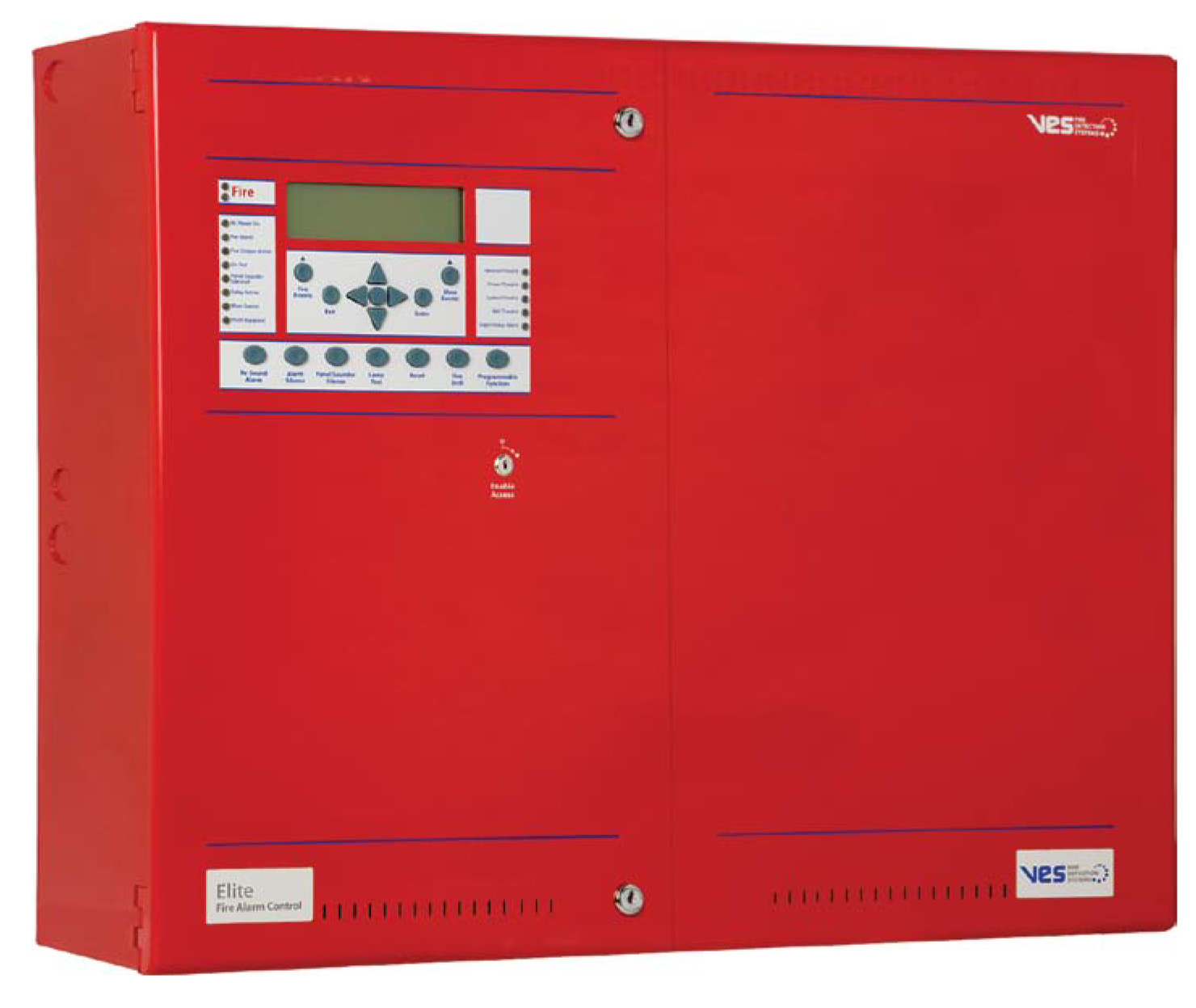

The VF1483 and VF1484 analog addressable FACP with networked releasing, supports 6 or 8 SLC loops for a total of 1000 primary points or for a total of 1600 points using subpoints..
SLC loop communications uses standard twisted pair cabling, shielded cable is not necessary.
The panel may be conﬁgured with various communication cards; Communications options support remote programming, central station monitoring, Virtual Panel, and networking.
The Panel can be conﬁgured as a stand alone panel with just a few devices for a small building, it can also operate as the building system and can be part of a network with a total of 32 nodes serving a multiple building campus or a very large facility.
Auto Learn capability provides a convenient method to troubleshoot new installations before ﬁnal programming is loaded.
Multi-Loop 6 Analog Addressable Loops Field
upgradable to 8
126 primary points per loop
Powerful, network wide cause and eﬀects (500
total). Fully user programmable by point or zone. 1600 points per panel when using devices with
Up to 10,000 ft. wiring length on SLC loop
32 Panels on a network
Programmable through a PC connection to the
panel, or through keypad
Programmable relays – 10
Supervised Powered Outputs – 6 Programmable Notiﬁcation Appliance Circuits: 8 Power per NAC: 1.6 Amps Max
Programmable outputs on SLC loop Programmable Function button on front display Fire Drill button on front display
Day and night sensitivity settings (user
Power Supply: 5.25 Amp, regulated & integrated LCD Display: 8x40
Zonal Mode: Annunciation by zone w/o individual
Panel Ring Modes: Common, Zonal, Stage 2
NAC Outputs programmable as Continuous, March,
Program Cause and Eﬀects AND, OR, or Any Two
Battery size: Up to 4 -17 Ah in standard enclosure; up to
52 Ah with external cabinet Access levels: 3
Access key switch: Yes Recognized for use in High Rise One man walk test – Fire Test Mode Available in Red or Gray
