FEATURES Simple Installation and Commissioning - Factory programmed and ready for use upon delivery. Single Source Responsibility - One manufacturer is responsible for every aspect of the energy measurement process, ensuring component compatibility and overall system accuracy. N.I.S.T.* Traceable Calibration with Certificate -...

FEATURES

Simple Installation and Commissioning - Factory programmed and ready for use upon delivery.

Single Source Responsibility - One manufacturer is responsible for every aspect of the energy measurement process, ensuring component compatibility and overall system accuracy.

N.I.S.T.* Traceable Calibration with Certificate - Customer supplied application data is used to individually calibrate the flow and temperature sensors using N.I.S.T. traceable standards. This is followed by a complete system calibration. A certificate of calibration is provided with each meter. Field commissioning is also available.

Precision Solid-State Temperature Sensors - Integral sensors are custom calibrated and matched to an accuracy better than ±0.15°F over the calibrated range.

Highly Accurate Integral Flow Meter - Built-in turbine flow meter is accurate to within ±0.5% of reading at the calibrated flow rate and within ±2% of reading over an extended range (0.8 - 38 gpm.)

Complete Installation Package - Mechanical installation hardware, sensor cable and installation instructions are provided to ensure error-free installation and optimal performance.

*National Institute of Standards and Technology

0993-System-30-P1

DESCRIPTION

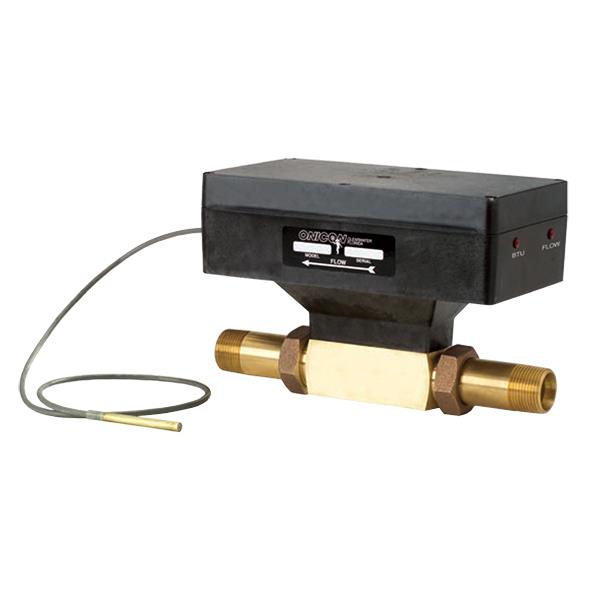

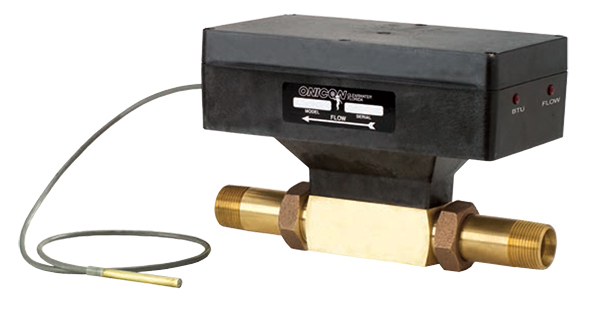

The System-30-P1 provides highly accurate thermal energy measurement in chilled water, hot water or condenser water systems based on signal inputs from two integral matched temperature sensors and an integral ONICON inline turbine meter. This compact system is suitable for use in piping systems with flow rates from 0.8 to 38 gpm. The Siemens P1 (FLN) network interface, communicates energy, flow and temperature data directly to the network. An optional backlit display is also available to provide a local indication of the same data.

Each System-30 is also provided with an auxiliary pulse input for totalizing the pulse output from an external device such as a water or gas meter. Pulses are totalized in an internal register and transmitted to the network. This total is also available on the optional local display.

APPLICATIONS

Chilled water, hot water and condenser water systems for:

•Commercial office tenant billing

•Residential apartment and condominium

tenant buildings

ORDERING INFORMATION

The System-30 is sold complete with integral
flow meter, temperature sensors and (1) standard thermowell. Please refer to the ONICON catalog for available options.

GENERAL SPECIFICATIONS

ACCURACY

FLOW
± 0.5% of reading at calibrated velocity

± 1.0% of reading from 5.7 to 38 gpm (0.36 to 2.4 l/s) ± 2.0% of reading from 0.8 to 38 gpm (0.05 to 2.4 l/s)

DIFFERENTIAL TEMPERATURE ACCURACY
± 0.15° F (0.083° C) over calibrated temperature range

COMPUTATIONAL ERROR

±0.05%
