GENERAL SPECIFICATIONS MECHANICAL Electronics Enclosure: DB-1201-01: steel NEMA 4 wall mount, 6” x 6” x 4” DB-1202-01:...

GENERAL SPECIFICATIONS

MECHANICAL

Electronics Enclosure:

DB-1201-01: steel NEMA 4 wall mount, 6” x 6” x 4” DB-1202-01: steel NEMA 4 wall mount, 10” x 8” x 4”

ELECTRICAL
Input power: Standard: 24 VAC 50/60 Hz, 750mA max*

Optional: 120 VAC 60 Hz, 250mA max Optional: 230 VAC 50 Hz, 125mA max

*Varies with meter model and number of displays INTERNAL POWER SUPPLY

Provides 24VDC, 250mA maximum to electronics and

flow sensor INDICATOR(S)

1 or 2 numeric LCD displays, 0.46” high digits D-1201-01: Single LCD for flow rate only
D-1202-02: Dual LCDs for rate and total in each direction Rate: 6 digits (“R” indicates rate)

Total: 8 digits (Overflow indication provided)

Flow direction LEDs, 2

FLOW SIGNAL INPUT/OUTPUT
Input: DC pulse/frequency or dry contact output from

ONICON insertion or inline flow meters
Output: Additional output signal(s) ordered with flow

meter are available for connection to control system via the display module terminal strip.

AUXILIARY SCALED PULSE OUTPUT OPTION

Scaled Output: For totalization; scaled to a specific unit of volume per pulse (i.e. 10 gal/pulse).

Auxiliary output is in addition to any outputs provided by the flow meter. (DB-1202-01 only)

PROGRAMMING

Factory programmed for specific application

Field programmable via front LCD interface MEMORY

Non-volatile EEPROM memory retains data in the event

of power loss. ENVIRONMENTAL

Operating temperature range: -20° to 140°F Operating humidity range: 0 to 85% RH

(Non-condensing)

0932-2-DB-1201

DESCRIPTION

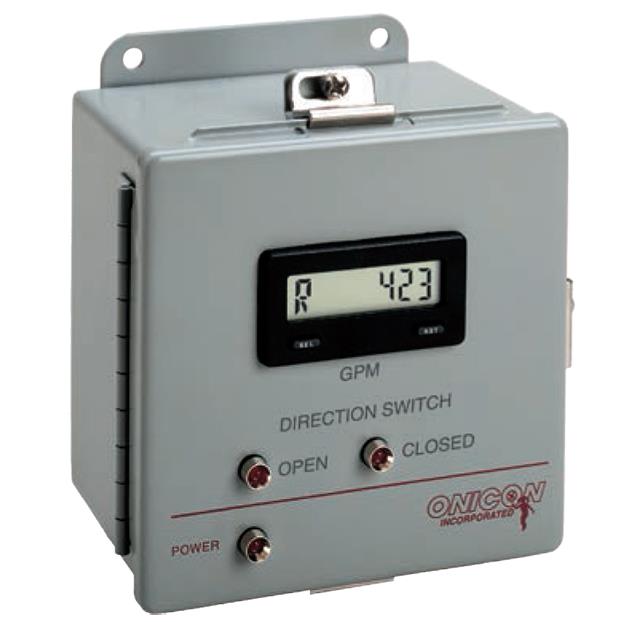

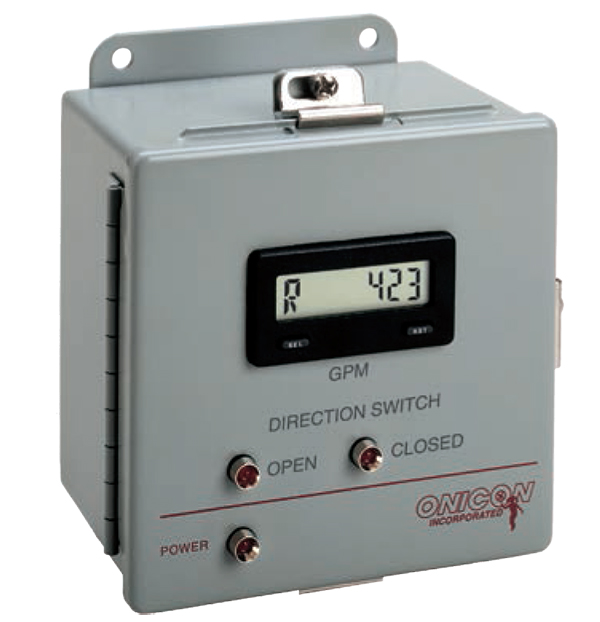

The DB-1200 series displays are modular display centers that convert an ONICON bi-directional insertion turbine or bi-directional insertion electromagnetic flow meter into a complete flow monitoring station. The steel, wall mounted module displays the current flow rate and
total and provides an indication of flow direction. It also provides a low voltage DC power source for powering the flow meter.

The versatile display module can be located close to the flow meter or up to several hundred feet away. Using the flow meter with the display module will also allow for connectivity to other remote devices such as BTU meters, building control systems, and data acquisition systems.

DB-1200 series display modules are specifically designed for bidirectional flow applications. For standard flow applications see the D-1200 series display module.

APPLICATIONS

• Primary / secondary decoupling loop (bypass)

• Stratified thermal storage charge/discharge lines

• Municipal water storage tank charge/discharge lines

• Chilled water, condenser water, and hot water HVAC monitoring

• Process monitoring in industrial plants
