GENERAL SPECIFICATIONS MECHANICAL Electronics Enclosure: Standard: steel NEMA 4 wall mount, 6” x 6” x 4” ELECTRICAL Input power: Standard: 24 VAC 50/60 Hz, 750mA max* Optional: 120 VAC 60 Hz, 250mA max Optional: 230 VAC 50 Hz, 125mA max *Maximum current varies with flow...

GENERAL SPECIFICATIONS

MECHANICAL

Electronics Enclosure:

Standard: steel NEMA 4 wall mount, 6” x 6” x 4” ELECTRICAL

Input power: Standard: 24 VAC 50/60 Hz, 750mA max*
Optional: 120 VAC 60 Hz, 250mA max Optional: 230 VAC 50 Hz, 125mA max

*Maximum current varies with flow meter model and

number of displays INTERNAL POWER SUPPLY

Provides 24VDC, 250mA maximum to electronics and

flow sensor INDICATOR(S)

Numeric LCD displays, 0.46” high digits
Rate: 6 digits (“R” indicates rate)

Total: 8 digits (Overflow indication provided) D-1201-1: Single LCD with pushbutton toggle between

rate and total
D-1202-01: Dual LCDs one for rate and one for total

FLOW SIGNAL INPUT/OUTPUT
Input: DC pulse/frequency or dry contact output from

ONICON insertion or inline flow meters
Output: Additional output signal(s) ordered with flow

meter are available for connection to control system via the display module terminal strip.

AUXILIARY SCALED PULSE OUTPUT OPTION

Scaled Output: For totalization; scaled to a specific unit of volume per pulse (i.e. 10 gal/pulse).

Auxiliary output is in addition to any outputs provided by the flow meter.

PROGRAMMING

Factory programmed for specific application

Field programmable via front LCD interface MEMORY

Non-volatile EEPROM memory retains data in the event

of power loss. ENVIRONMENTAL

Operating temperature range: -20° to 140°F Operating humidity range: 0 to 85% RH

(Non-condensing)

0930-2-D-1201

DESCRIPTION

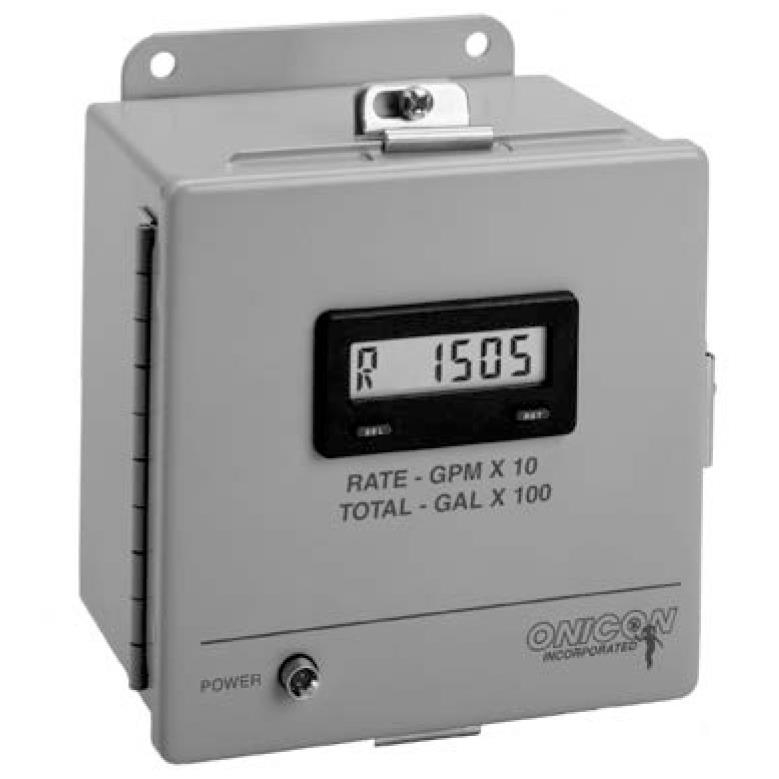

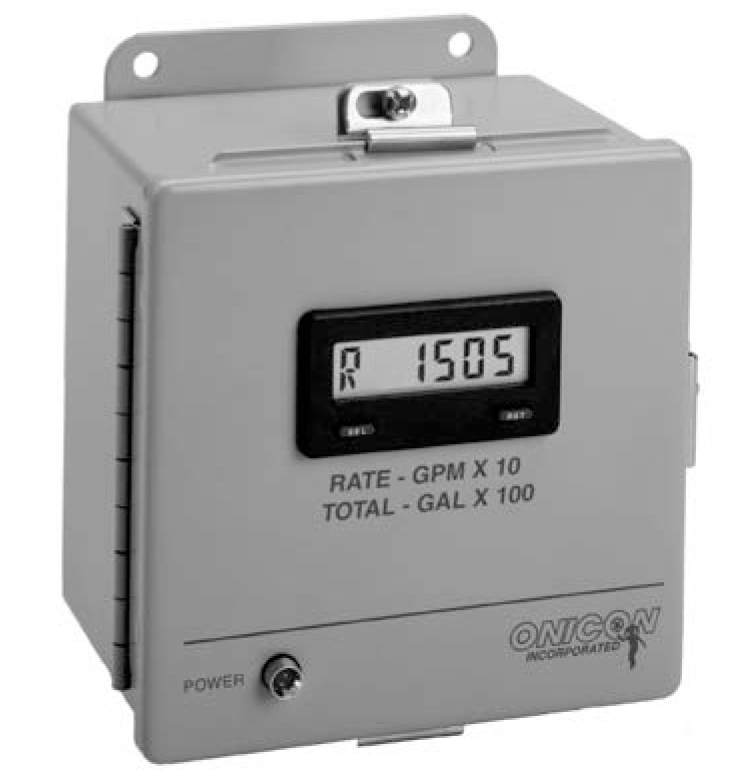

D-1200 series displays are modular flow display centers that convert ONICON insertion and inline flow meters into complete flow monitoring stations. The steel, wall mounted modules display the current flow rate and total and provide a low voltage DC power source capable
of powering most ONICON inline and insertion flow meters.

The versatile display module can be located close to the flow meter or up to several hundred feet away. Using the flow meter with the display module will also allow you to support other remote devices such as Btu meters, building control systems, and data acquisition systems.

D-1200 series display modules are not designed for bidirectional flow applications. For bidirectional flow applications see the DB-1200 series display module.

APPLICATIONS

• HVAC chilled water, condenser water, and heating hot water flow monitoring

• Domestic water flow monitoring

• Natural gas monitoring

• Compressed air monitoring

• Process flow monitoring in industrial plants

• Municipal water flow monitoring
