0604-6-D-100

FEATURES

Works With Virtually Any Flow Meter -

The standard flow input of the D-100 accepts active or passive 4 – 20 mA, active or passive pulse and contact closure flow signals.

Serial Communications -

Optional communications card provides all rate and total data to the control system through a single network connection, reducing installation costs.

Supports a Wide Variety of Communications Protocols -

The D-100 can be provided with any of the following network interface options:

• BACnet/IP

• BACnet MS/TP

• LONWORKS FTT10

• MODBUS RTU-RS485

• MODBUS RTU-TCP/IP

• Johnson Controls Metasys N2

• Siemens Apogee P1

Suitable for Bi-directional Applications -

The D-100 accumulates separate totals for flow in each direction. The totals may be read locally on the display or remotely via an optional network interface.

Simple Installation and Commissioning -

The D-100 is factory programmed and ready for use upon delivery. All programming functions are accessible via front panel display and keypad.

DESCRIPTION

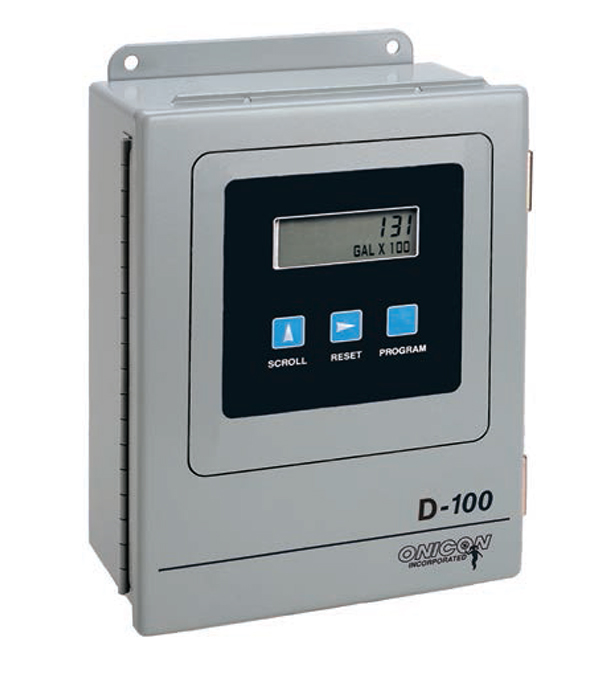

The D-100 is a totalizing display module that provides a local indication of liquid or steam flow rate and total data. The flexible design can also be configured with an optional network interface to communicate flow data to the building control network. It is housed in a steel wall mounted enclosure with a built-in user interface/display. The standard flow input accepts 4-20 mA, pulse or contact closure flow signals. The versatile D-100 can also function as a network interface for 2 additional analog rate inputs and one additional totalizing pulse input. It can also be configured with up to 4 optional analog outputs.

APPLICATIONS

• HVAC chilled water, condenser water and hot water

• Hot and cold domestic water

• Gray water and irrigation water

• Saturated or superheated steam

• Process monitoring

GENERAL SPECIFICATIONS

Accuracy

Analog inputs: 0.1% of full scale

Analog outputs: 0.1% of full scale

Mechanical

Electronics Enclosure:

Standard: steel NEMA 13 wall mount 10” x 8” x 4”

Optional: steel NEMA 4 wall mount 10” x 8” x 4”

Electrical

Input power:

Standard: 24VAC 50/60Hz, 500mA max Optional: 120VAC 60Hz, 250mA max Optional: 230VAC 50Hz, 125mA max

Internal power supply

Provides 24VDC, 250mA maximum to electronics

and sensors

Display

Standard: 2-line Alphanumeric LCD displays flow rate and flow total

Alpha: 16 character, 0.2” high, Numeric 7 digit, 0.4”

high
