DESCRIPTION

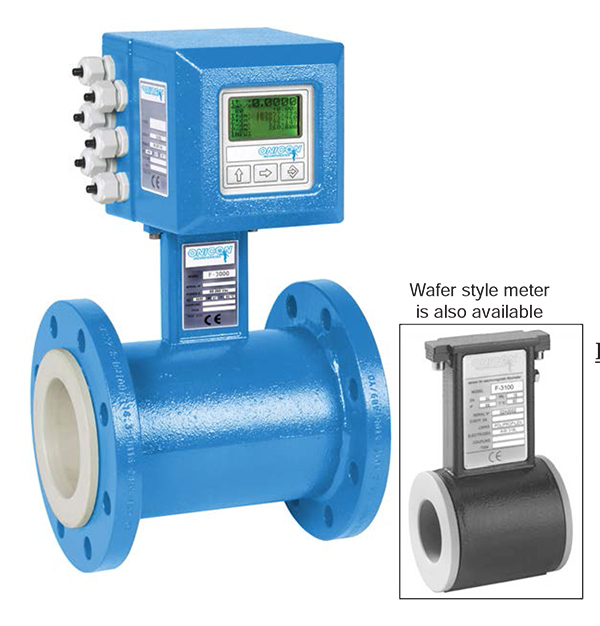

ONICON F-3200 series in-line electromagnetic flow meters are suitable for measurement of electrically conductive liquids in a wide variety of applications. Inherently bi-directional, each F-3200 flow meter is equipped with ONICON’s advanced transmitter option. The F-3200 provides a single analog 4-20mA output for flow rate and two programmable pulse outputs. The advanced transmitter is also equipped with a graphic display that may be used to monitor short term trend data or to facilitate batch processing functions using the optional relay output module.

APPLICATIONS

• Chilled water, hot water, condenser water

& water/glycol/brine solutions used in HVAC

•Bi-directional flow for primary/secondary bypass

•Process flow with conductivity greater than 5µS/cm

•Domestic/municipal water

GENERAL SPECIFICATIONS

ACCURACY

Accurate to within:

• ± 0.2% of reading from 1.6 to 33 ft/s

• ± 0.0033 ft/s from 0.033 to 1.6 ft/s

(continued on back)

CALIBRATION

Every ONICON F-3200 series flow meter is wet calibrated in a flow laboratory against standards that are directly traceable to international standards. A certificate of calibration accompanies every meter.

FEATURES

Exceptional Performance & Accuracy - F-3200 series

meters deliver ± 0.2% of reading accuracy with as little as 3 diameters of straight pipe upstream of the meter, a level of performance unmatched by other

products.

Easy to Install and Use - Every ONICON meter is individually calibrated, configured and programmed using customer specific application data. Complex field programming is not required.

Excellent Long Term Reliability - ONICON electromagnetic flow meters have no moving parts. In addition, state-of-the-art electronics and proprietary noise filtering algorithms ensure years of accurate, trouble-free performance. This makes them the ideal choice for critical measurement applications or applications where water quality is less than ideal.

Installation Flexibility - The F-3200 is an ideal
choice for difficult installations as it only requires
3 diameters of straight pipe upstream and 2 diameters downstream for proper operation, in most

applications.

Redundant Outputs – For critical installations, meters equipped with the redundant output option provide complete signal redundancy for all three output signals from the flow meter. This option includes an additional integral transmitter with dedicated connections to the main processor, providing a cost effective alternative to a second, redundant flow meter.
