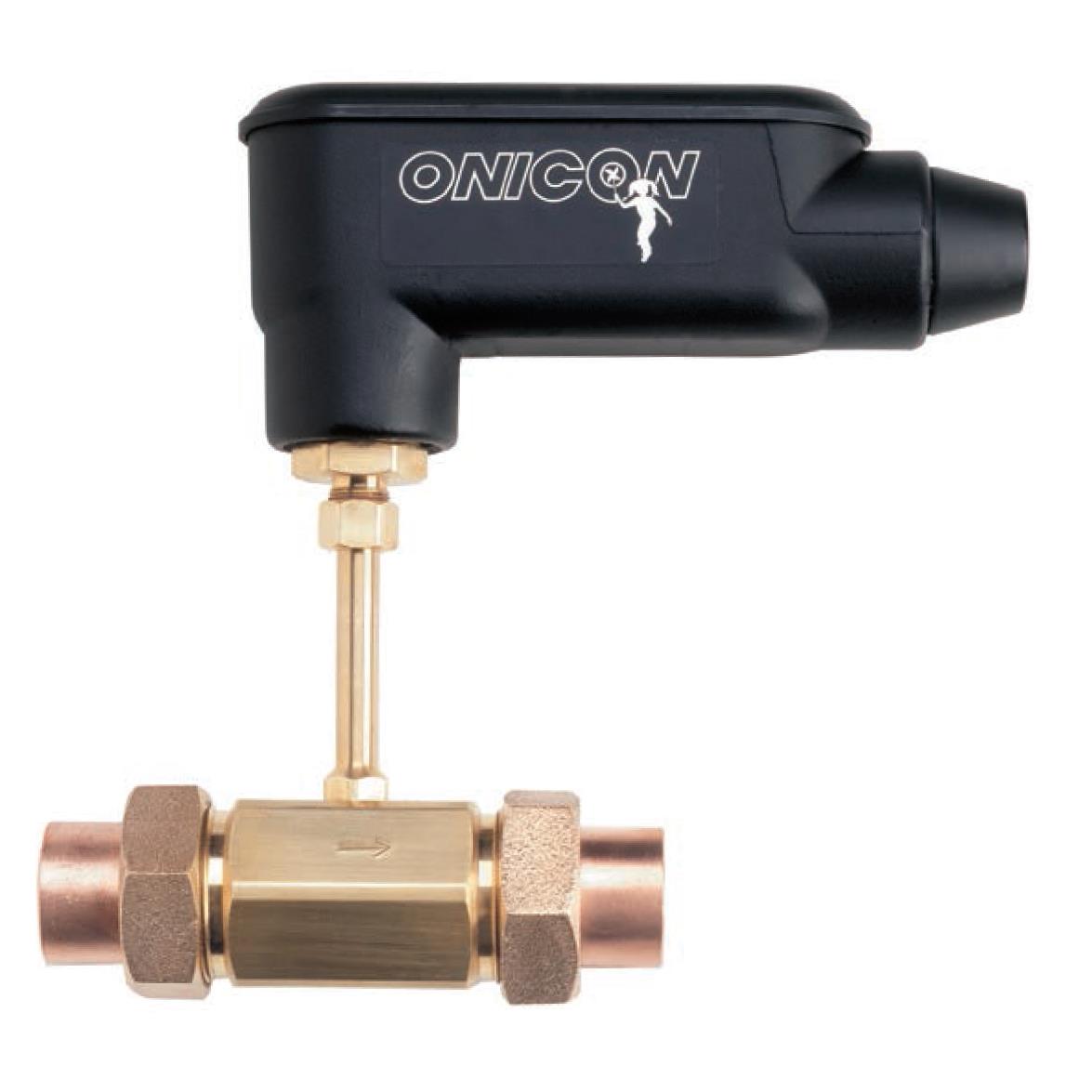

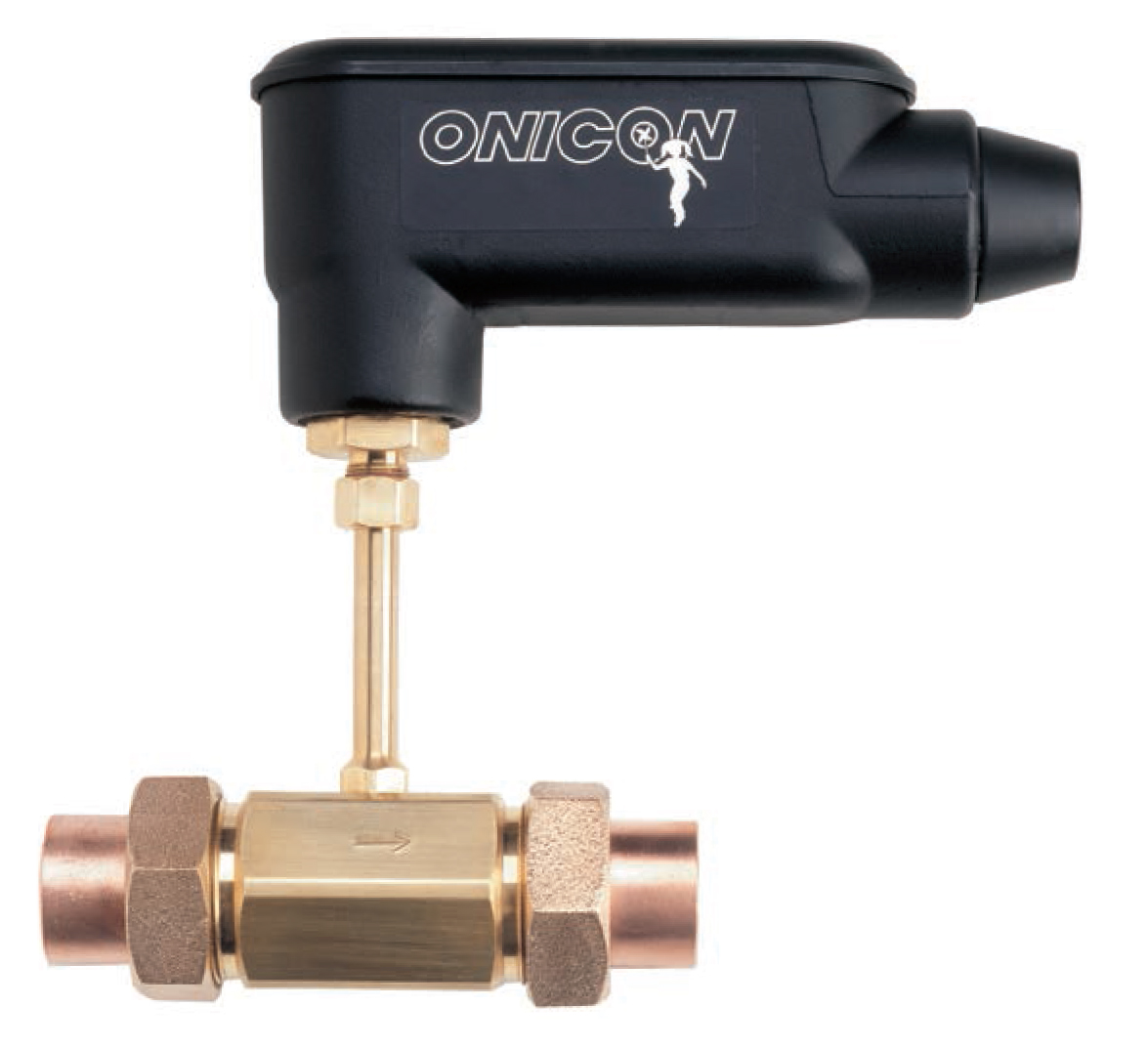

ONICON inline turbine ﬂow meters are suitable for measuring electrically conductive water-based liquids. The F-1310 model provides non-isolated 4-20 mA and 0-10 V analog output signals that are linear with the ﬂow rate.
Every ONICON ﬂow meter is wet calibrated in our ﬂow laboratory against primary volumetric standards that are directly traceable to N.I.S.T. A certiﬁcate of calibration accompanies every meter.
Unmatched Price vs. Performance - Custom calibrated, highly accurate instrumentation at very competitive prices.
Excellent Long-term Reliability - Patented electronic sensing is resistant to scale and particulate matter. Low mass turbines with
engineered jewel bearing systems provide a mechanical system that virtually does not wear.
Industry Leading Two-year “No-fault” Warranty
Reduces start-up costs with extended coverage to include accidental
installation damage (miswiring, etc.) Certain exclusions apply. See our complete warranty statement for details.
• Closed loop chilled water, hot water, condenser water & water/glycol/brine solutions for HVAC
• Process water & water mixtures
± 0.5% of reading at calibrated velocity
± 2% of reading from 0.8 to 38 GPM (50:1 range)
Electronic impedance sensing (non-magnetic and non-photoelectric)
Threaded or sweat union ﬁttings ¾” or 1” SUPPLY VOLTAGE
24 ± 4 V AC/DC at 50 mA LIQUID TEMPERATURE RANGE
Standard: 180° F continuous, 200° F peak High Temp: 280° F continuous, 300° F peak
AMBIENT TEMPERATURE RANGE
-5° to 160° F (-20° to 70° C) OPERATING PRESSURE
400 PSI maximum PRESSURE DROP
3 PSI at maximum ﬂow rate
OUTPUT SIGNALS PROVIDED
Analog Outputs (non-isolated)
Voltage output: 0-10 V (0-5 V available) Current output: 4-20 mA
0 – 15 V peak pulse, typically less than 300 Hz
Brass housing and stem
Sapphire bearings and tungsten carbide shaft
Weathertight aluminum enclosure ELECTRICAL CONNECTIONS
3-wire minimum for 4-20 mA or 0-10 V output Standard: 10’ of cable with ½” NPT
Optional:Indoor DIN connector with 10’
of plenum rated cable
