DESCRIPTION

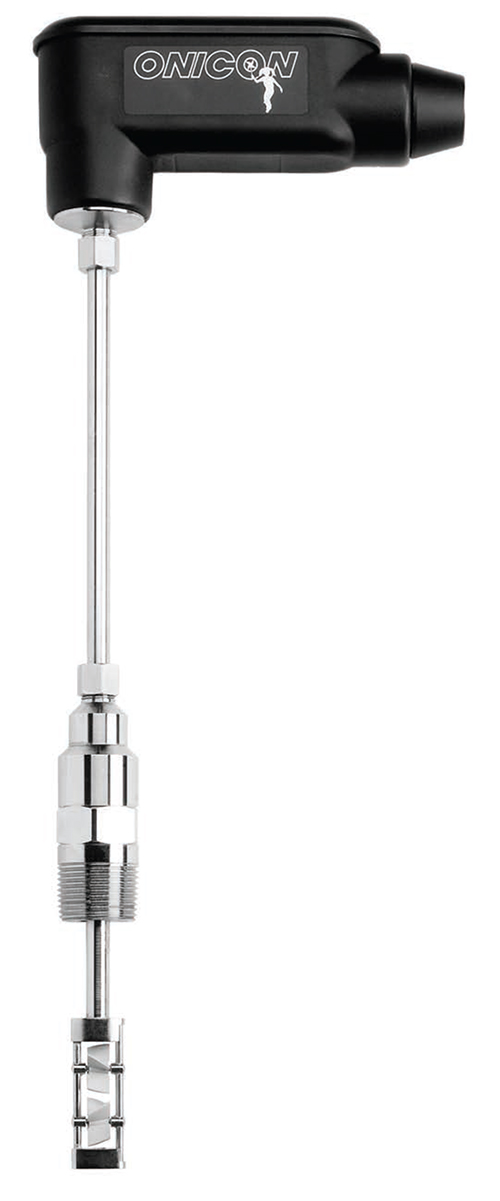

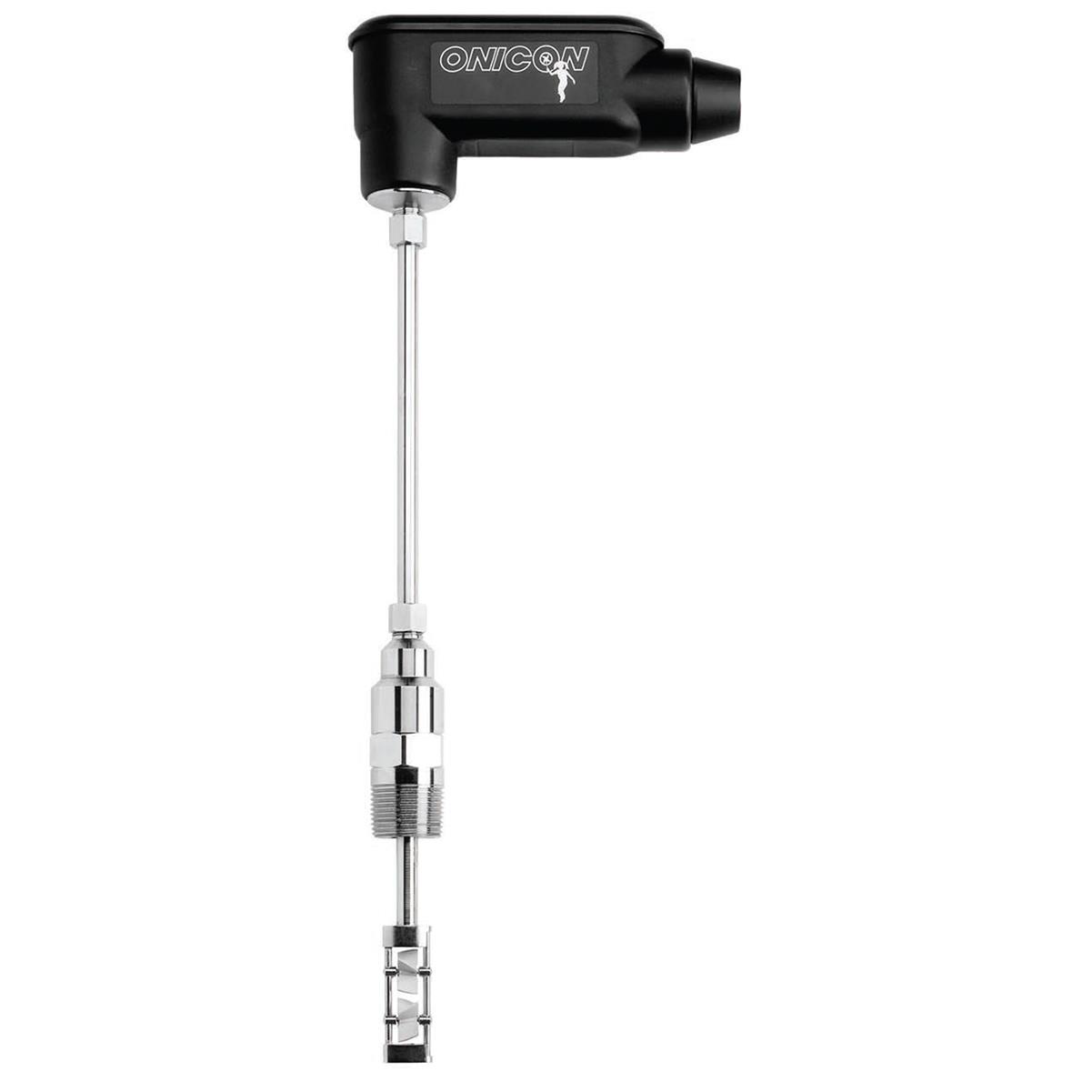

ONICON insertion turbine flow meters are suitable for measuring electrically conductive water-based liquids. The F-1220 model provides a binary (digital) dry contact output signal corresponding to flow rate, which is divided to meet the monitoring system input frequency limitation.

APPLICATIONS

• Closed loop chilled water, hot water, condenser water & water/glycol/brine solutions for HVAC

• Process water & water mixtures

• Domestic water

GENERAL SPECIFICATIONS

ACCURACY

± 0.5% of reading at calibrated velocity
± 1% of reading from 3 to 30 ft/s (10:1 range)
± 2% of reading from 0.4 to 20 ft/s (50:1 range)

SENSING METHOD

Electronic impedance sensing (non-magnetic and non-photoelectric)

PIPE SIZE RANGE

2½” through 72” nominal diameter SUPPLY VOLTAGE

24 ± 4 V AC/DC at 30 mA LIQUID TEMPERATURE RANGE

Standard: 180° F continuous, 200° F peak High Temp: 280° F continuous, 300° F peak Meters operating above 250° F require 316 SS

construction option
AMBIENT TEMPERATURE RANGE

-5° to 160° F (-20° to 70° C) OPERATING PRESSURE

400 PSI maximum PRESSURE DROP

Less than 1 PSI at 20 ft/s in 2½” pipe, decreasing in larger pipes and lower

velocities
OUTPUT SIGNALS PROVIDED

Divided Contact Output
Isolated solid state dry contact Contact rating: 100 mA, 50 V

Frequency Output
0 – 15 V peak pulse, typically less than 300 Hz



0220-2-F-1220

CALIBRATION

Every ONICON flow meter is wet calibrated in our flow laboratory against primary volumetric standards that are directly traceable to N.I.S.T. A certificate of calibration accompanies every meter.

FEATURES

Unmatched Price vs. Performance - Custom calibrated, highly accurate instrumentation at very competitive prices.

Excellent Long-term Reliability - Patented electronic sensing is resistant to scale and particulate matter. Low mass turbines with engineered jewel bearing systems provide a mechanical system that virtually does not wear.

Industry Leading Two-year “No-fault” Warranty

Reduces start-up costs with extended coverage to include accidental installation damage (miswiring, etc.) Certain exclusions apply. See our complete warranty statement for details.

Simplified Hot Tap Insertion Design -
Standard on every insertion flow meter. Allows for insertion and removal by hand without system shutdown.
