DESCRIPTION

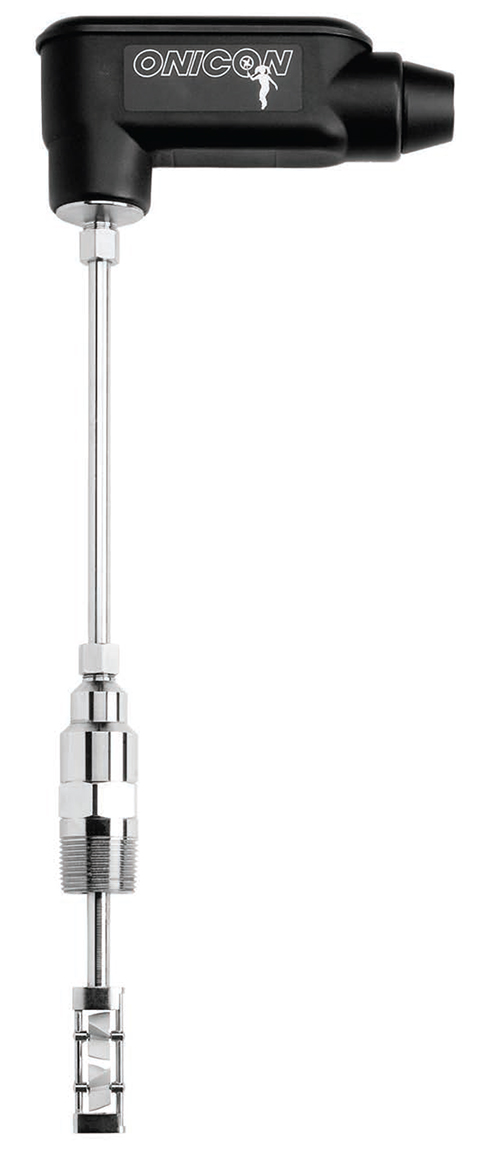

ONICON insertion turbine flow meters are suitable for measuring electrically conductive water-based liquids. The F-1210 model provides non-isolated 4-20 mA and 0-10 V analog output signals that are linear with the flow rate.

APPLICATIONS

• Closed loop chilled water, hot water, condenser water & water/glycol/brine solutions for HVAC

• Process water & water mixtures

• Domestic water

GENERAL SPECIFICATIONS

ACCURACY

± 0.5% of reading at calibrated velocity
± 1% of reading from 3 to 30 ft/s (10:1 range)
± 2% of reading from 0.4 to 20 ft/s (50:1 range)

SENSING METHOD

Electronic impedance sensing (non-magnetic and non-photoelectric)

PIPE SIZE RANGE

2½” through 72” nominal diameter SUPPLY VOLTAGE

24 ± 4 V AC/DC at 50 mA LIQUID TEMPERATURE RANGE

Standard: 180° F continuous, 200° F peak High Temp: 280° F continuous, 300° F peak Meters operating above 250° F require 316 SS

construction option
AMBIENT TEMPERATURE RANGE

-5° to 160° F (-20° to 70° C) OPERATING PRESSURE

400 PSI maximum PRESSURE DROP

Less than 1 PSI at 20 ft/s in 2½” pipe, decreasing in larger pipes and lower velocities

OUTPUT SIGNALS PROVIDED

Analog Output (non-isolated)
Voltage output: 0-10 V (0-5 V available) Current output: 4-20 mA

Frequency Output
0 – 15 V peak pulse, typically less than 300 Hz

(continued on back)

CALIBRATION

Every ONICON flow meter is wet calibrated in
our flow laboratory against primary volumetric standards that are directly traceable to N.I.S.T.

A certificate of calibration accompanies every meter.

FEATURES

Unmatched Price vs. Performance -

Custom calibrated, highly accurate instrumentation at very competitive prices.

Excellent Long-term Reliability -
Patented electronic sensing is resistant to scale and particulate matter. Low mass turbines with engineered jewel bearing systems provide a mechanical system that virtually does not wear.

Industry Leading Two-year “No-fault” Warranty -

Reduces start-up costs with extended coverage to include accidental installation damage (miswiring, etc.) Certain exclusions apply. See our complete warranty statement for details.

Simplified Hot Tap Insertion Design -
Standard on every insertion flow meter. Allows for insertion and removal by hand without system shutdown.
