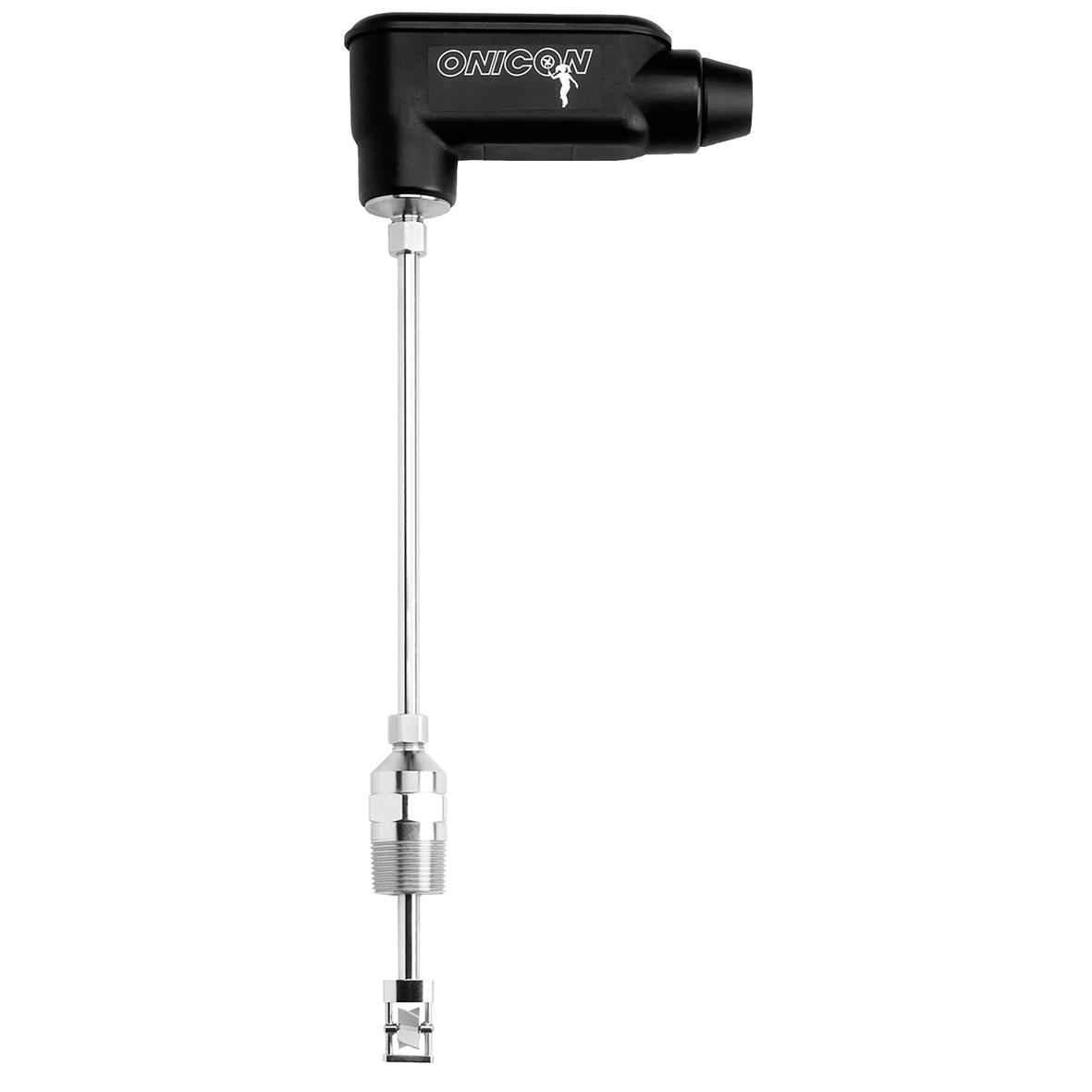

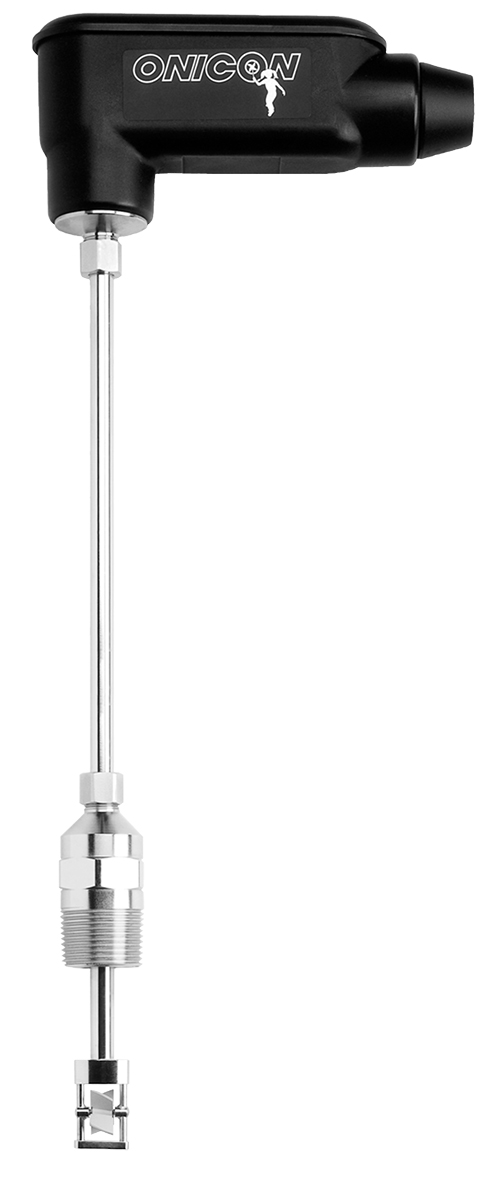

ONICON insertion turbine ﬂow meters are suitable for measuring electrically conductive water-based liquids. The F-1130 model provides a scaled binary (digital) dry contact output signal where each pulse equals a speciﬁc unit volume; an ideal choice for totalized ﬂow applications.
• Closed loop chilled water, hot water, condenser water & water/glycol/brine solutions for HVAC
• Process water & water mixtures
• Domestic water
± 0.5% of reading at calibrated velocity
± 1% of reading from 3 to 30 ft/s (10:1 range)
± 2% of reading from 0.4 to 20 ft/s (50:1 range)
Electronic impedance sensing (non-magnetic and non-photoelectric)
PIPE SIZE RANGE
1¼” through 72” nominal diameter SUPPLY VOLTAGE
24 ± 4 V AC/DC at 30 mA LIQUID TEMPERATURE RANGE
Standard: 180° F continuous, 200° F peak High Temp: 280° F continuous, 300° F peak Meters operating above 250° F require 316 SS
AMBIENT TEMPERATURE RANGE
-5° to 160° F (-20° to 70° C) OPERATING PRESSURE
400 PSI maximum PRESSURE DROP
Less than 1 PSI at 20 ft/s in 1½” pipe, decreasing in larger pipes and lower velocities
OUTPUT SIGNALS PROVIDED
Scaled Contact Ouput
Isolated solid state dry contact Contact rating: 100 mA, 50 V
Contact duration: 50 ms or 300 ms,
0 – 15 V peak pulse, typically less than 300 Hz
Every ONICON ﬂow meter is wet calibrated in a ﬂow laboratory against primary volumetric standards that are directly traceable to N.I.S.T. A certiﬁcate of calibration accompanies every meter.
Unmatched Price vs. Performance - Custom calibrated, highly accurate instrumentation at very competitive prices.
Excellent Long-term Reliability - Patented electronic sensing is resistant to scale and particulate matter. Low mass turbines with engineered jewel bearing systems provide a mechanical system that virtually does not wear.
Industry Leading Two-year “No-fault” Warranty
Reduces start-up costs with extended coverage to include accidental installation damage (miswiring, etc.) Certain exclusions apply. See our complete warranty statement for details.
Simpliﬁed Hot Tap Insertion Design -
Standard on every insertion ﬂow meter. Allows for insertion and removal by hand without system shutdown.
