Software : DWS-340: ORCAweb

Description

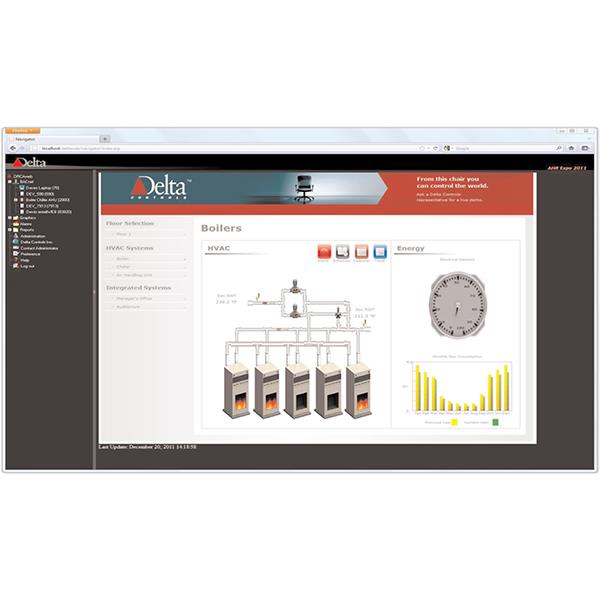

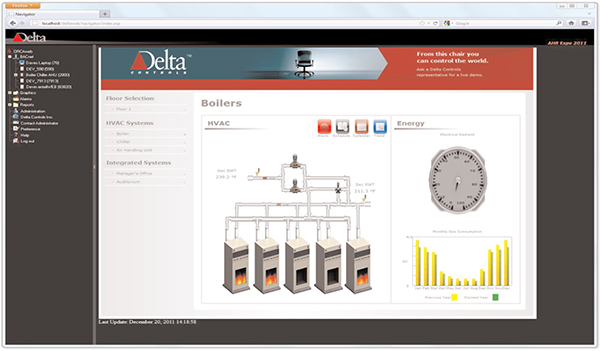

ORCAweb is an innovative, content rich web server application that allows facility managers, service personnel, and building tenants access to the building automation system with a simple web browser application. The level of access to the building automation system can be customized for a specific user.

Facility managers and service personnel can view system graphics and configuration objects, while tenants can view specific data via the Tenant Portal or Virtual Stat™.

Tenant Portals allow each tenant to view a customized web page that displays the current status of mechanical, lighting, and access systems that serve their office area. Tenants can easily set their own occupancy schedule and holidays to maximize the energy efficiency of these systems.

Virtual Stat is a simple virtual thermostat that resides within the system tray toolbar on the tenant’s PC. It allows tenants the ability to display the current room temperature, outside air temperature and adjust the room temperature setpoint with the simple click of a mouse button.

Specifications

BACnet Device Profile

BACnet Operator Workstation (B-OWS) Server Specifications Operating System

Microsoft Windows XP/

2003/2008 Server/Vista/Windows 7 PC (minimum)

Intel/AMD @ 1 GHz

2 GB RAM

2 GB free hard disk space Video

1024 x 768 (16 bit color)

Client PC Specifications

Operating System: Microsoft Windows

XP/Vista/Windows 7
Browser: Internet Explorer, Firefox & Chrome Video: 1024 x 768 (16 bit color)

Client Smart Phone Specifications

Windows Mobile, Blackberry etc. Display

Simple Pages
