Software: DOW-340

Description

ORCAview is an industry leading operator workstation software package that combines an intuitive graphical user interface with powerful, easy-to-use facility management tools.

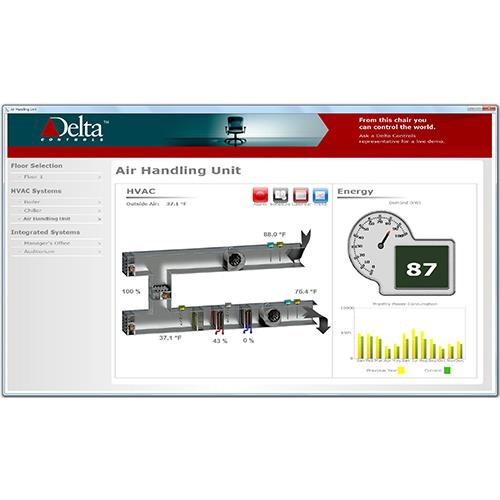

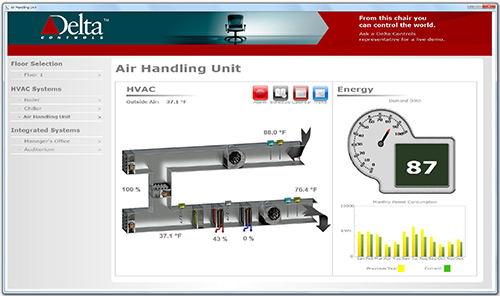

ORCAview includes a three-dimensional animated graphics tool for displaying real-time building information, and an intuitive object-oriented Navigator to monitor operational parameters, modify schedules, create custom programs, manage alarms, and view trend logs.

ORCAview uses BACnet® IP to communicate over wide area networks including the Internet or intranets to any building or site. BACnet over Ethernet and BACnet MS/TP are used to communicate to local area networks.

BACnet PTP may be used to connect to any Delta Systems Controller either directly or via modem for remote site-wide access.

Several optional software packages expand ORCAview’s capabilities to provide unparalleled facilities management solutions. Easily create intuitive, custom system graphics with the Illustrator option. Use the optional Historian package to archive and preserve years of trend log and alarm data in a SQL database. Connect the entire building automation network to business-level applications with the optional ODBC driver.

Specifications

BACnet Device Profile

BACnet Operator Workstation (B-AWS)

Operating System

Microsoft® Windows 2003 Server® Microsoft Windows 2008 Server® Microsoft Windows XP® Microsoft Windows Vista® Microsoft Windows® 7

PC (minimum)

Intel® / AMD @ 1GHz

2 GB RAM

2 GB free hard disk space

Vidéo

1024 x 768 (16 bit color)

Direct X 10 compatible Video Card
