Description

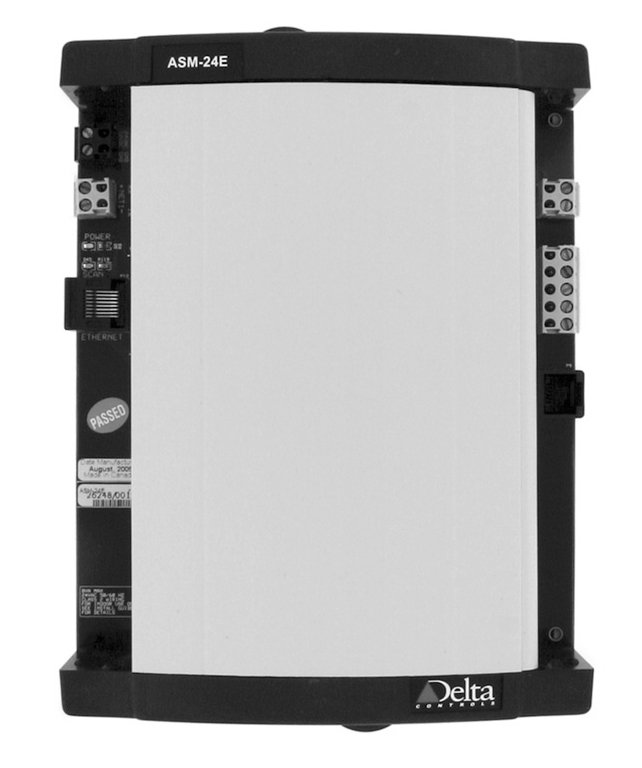

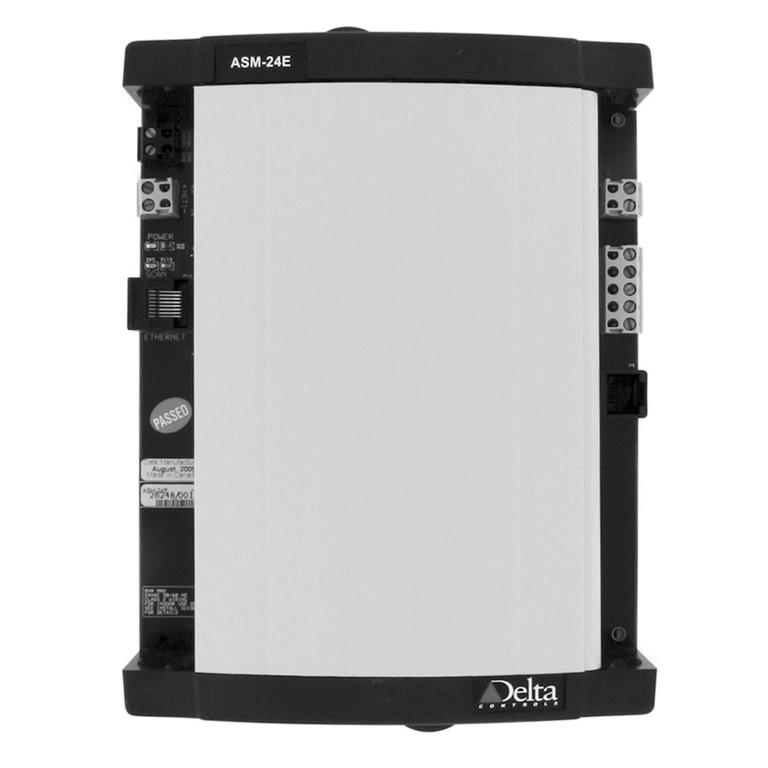

The Delta ASM-24E is a fully programmable, Native BACnet™ Building Controller that communicates on a BACnet MS/TP RS-485 LAN or BACnet over Ethernet. It is an intelligent controller specifically designed for access control applications. This controller provides access control capabilities through a network of door modules which act as extended I/O to the Access System Manager.

Application
The ASM-24E is designed for access control of multiple doors. Up to twelve 2-Door Modules
(ADM -2W704) may be connected to an Access System Manager via LINKnet. The Access System Manager can hold a maximum of 10000 cardholders and events.

The ASM-24E provides easy to configure alarms for system monitoring and annunciation of card-access events and alarms.

Programming the access control system is easy and intuitive because the programming is object oriented. Standard I/O and objects are created automatically and can be modified. GCL+ can be used for advanced custom programming and integration.

Features
—BACnet MS/TP and BACnet PTP protocols

—Database backup via non-volatile Flash memory

—Fully programmable in GCL+

—Easy-to-mount housing

—Application database can be loaded over the network

—Controller firmware can be flash loaded over the network

—Derived Network Addressing (DNA) for simple integration into a standard network architecture

—Operation of the card access system is completely contained in the controller, no PC required for operation

—Can be powered from a 12VDC battery in the event of a power failure

Specifications

BACnet Device Profile

BACnet Building Controller (B-BC)

Device Type

BACnet, can be configured as an Area, System

or Subnet device Technology

32-bit processor

2 MB (16 megabit) Flash memory

2 MB SRAM memory (database memory) Real-time clock with lithium ion

battery for clock & SRAM backup LED status indication
Device Address

Set via DIP switch and jumpers or software

setup Communication Ports

Main LAN (NET1)BACnet MS/TP @

9600,19200, 38400 or 76800 bps (default)

(maximum of 99 devices per BACnet MS/TP

segment)

SubLAN (NET2)Delta LinkNet @ 76800 bps

(maximum 12 Delta 2-Door ADM-2W704

module devices per controller)

BACnet over Ethernet, 10-BaseT
BACnet PTP @ 4800, 9600 (default), 38400

or 115200 bps
