DSM-050: BACnet Router

Description

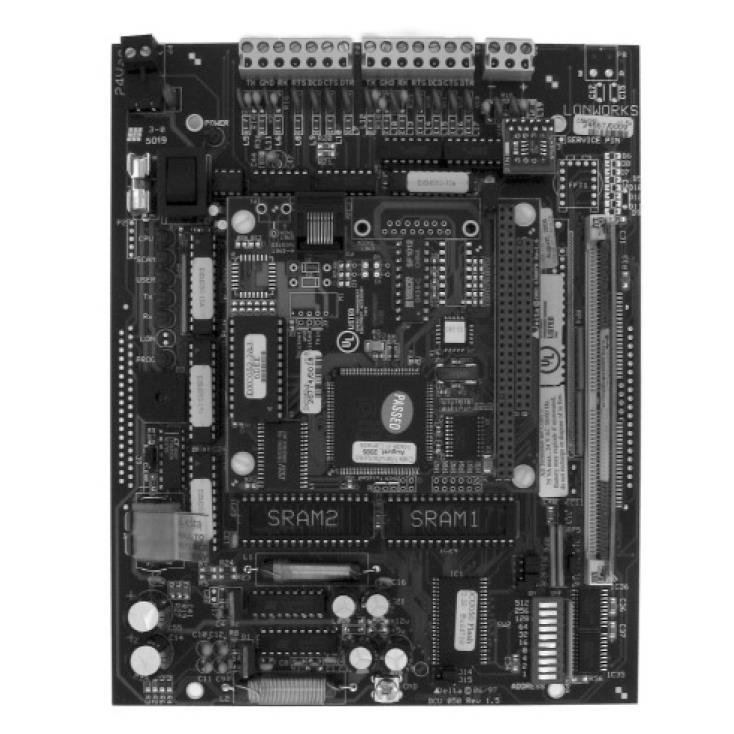

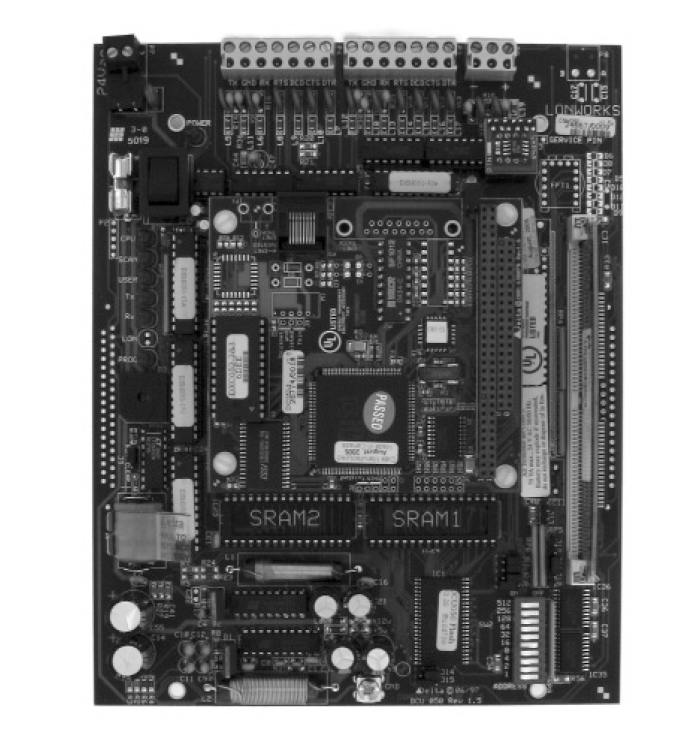

The DSM-050 is a fully programmable, Native BACnet™ Building Controller that routes network traffic between BACnet IP, BACnet over Ethernet, BACnet MS/TP, and BACnet PTP. The DSM-050 comes with a 10-BaseT Ethernet network card, one RS-485 Port, two RS-232 ports, real-time clock and battery backup.

Features
—Native BACnet IP, BACnet over Ethernet,

BACnet MS/TP and BACnet PTP

—Controller firmware stored in flash memory for easy upgrade

—Database memory expandable from 256 to 1256 KB (SRAM)

—Derived Network Addressing (DNA) for simple integration into a standard network architecture

Application
The DSM-050 is intended for use as an external point of connection to a building using BACnet IP. It may also be used for interconnecting different BACnet networks within a building.

Specifications

BACnet Device Profile

BACnet Building Controller (B-BC)

Technology

32-bit Processor
1 MB (8 megabit) Flash memory
256 KB SRAM memory (expandable to

1256 KB)

Real-time clock with NiCd/NiMH battery for

clock and SRAM backup
LED status indication of CPU SCAN Status,

Network Activity Device Address

Set via DIP switch, or software setup
DIP switch address range: 0 to 99 per network

segment
Software address range: as per the BACnet

standard
Supports Delta’s derived network addressing

(DNA) scheme Communication Ports

Twisted-Pair Ethernet

(10-BaseT) @ 10 MB, BACnet IP, BACnet over

Ethernet
Main LAN (NET1)

BACnet MS/TP @ 9600,19200, 38400

or 76800 bps (default) (maximum of

99 devices per BACnet MS/TP segment)

2 Serial RS-232

BACnet PTP, 9600, 19200 or 38400 bps
