FX 07

Description

The FX07 is a high performance field controller designed specifically for commercial Heating, Ventilating, Air Conditioning, and Refrigeration (HVACR) applications.

The FX07 supports 17 physical inputs and outputs including a wide range of sensors and actuating devices. The FX07 includes an onboard real-time clock to support the start/stop scheduling of equipment, real-time based control sequences, and time stamping of events and trend records.

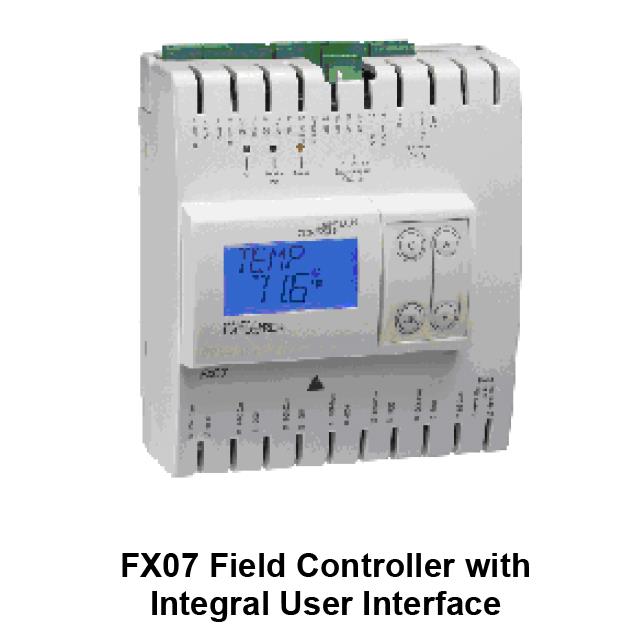

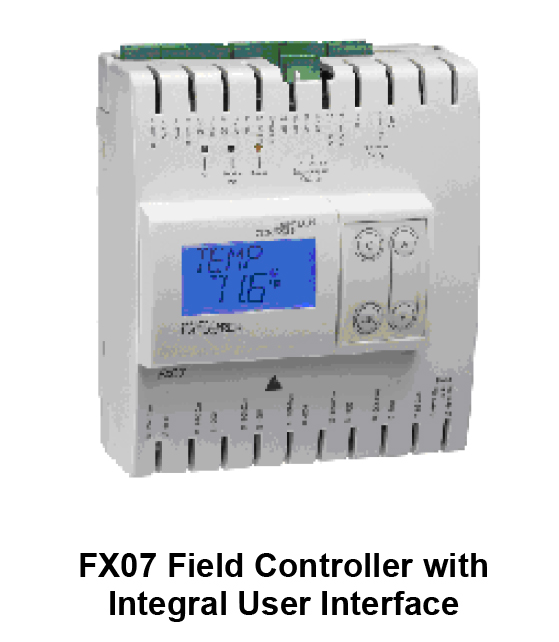

With the optional integral user interface, you can locally monitor and adjust the FX07’s operation. The FX07 also supports a panel- or wall-mountable Medium User Interface (MUI) for remote monitoring and adjustment.

The FX07 can be fitted with an N2 Open, LONWORKS®, or BACnet® communication card to integrate the controller into a compatible Building Automation System (BAS). Alternatively, the FX07 can be fitted with an RS-232C serial communication card to transmit event notification messages via Short Messaging Service (SMS) through a Global System for Mobile (GSM) modem.

Selection Charts

FX07 Controller Ordering Information (24 VAC Power Supply, without Integral Display)

Using the FX Tools software package, you can program the FX07 field controller to operate a wide variety of commercial HVACR equipment; including small refrigeration compressors, close control units, packaged rooftop units, fan coil units, unit ventilators, and chilling or heating ceiling beam installations.

Refer to the FX07 Field Controller Product Bulletin (LIT-12011268) for important product application information.

Features

•freely programmable controller

•network communication card options: N2 Open, LONWORKS, BACnet protocols

•remote communication services

•optional integral Liquid Crystal Display (LCD) user interface with four control buttons

•optional remote user interface

•analog outputs with Pulse Width Modulated (PWM) option

•models with various output configurations of solid-state triacs and line voltage relays

•Network Room Module (NRM)
