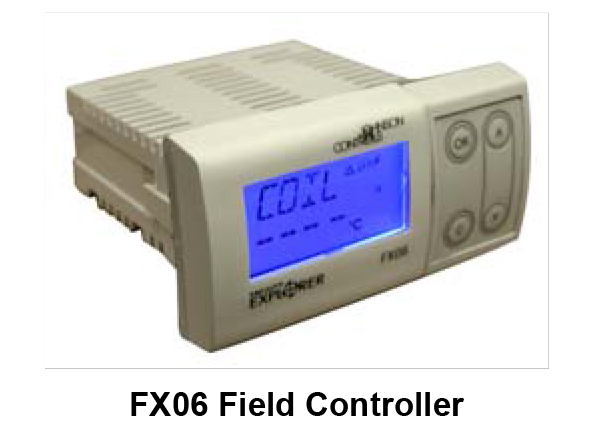

FX 06

Description

The FX06 is a high performance field controller designed specifically for commercial Heating, Ventilating, Air Conditioning, and Refrigeration (HVACR) applications.

The FX06 supports 17 physical inputs and outputs including a wide range of sensors and actuating devices. The FX06 includes an onboard real-time clock to support the start-stop scheduling of equipment, real-time based control sequences, and time stamping events and trend records.

With the integral user interface, you can locally monitor and adjust the FX06’s operation. The FX06 also supports a remote panel- or wall-mountable Medium User Interface (MUI) for remote monitoring and adjustment.

The FX06 can be fitted with an N2 Open or LONWORKS® communication module to integrate the controller into a compatible Building Automation System (BAS). Alternatively, the FX06 can be fitted with an RS-232C serial communication module to transmit event notification messages via Short Messaging Service (SMS) through a Global System for Mobile (GSM) modem.

Using the FX Tools software package, you can program the FX06 field controller to operate a wide variety of commercial HVACR equipment; including small refrigeration compressors, close control units, packaged rooftop units, fan coil units, unit ventilators, and chilling or heating ceiling beam installations.

Note: This document applies to the LPFX06Pxx-020C models only.

Refer to the FX06 Field Controller Product Bulletin (LIT-12011165) for important product application information.

Features

•freely programmable controller

•network communication module options: N2 Open, or LONWORKS protocols

•remote communication services

•integral Liquid Crystal Display (LCD) user interface with four control buttons

•optional remote user interface

•analog outputs

•models with various output configurations of solid-state triacs and line voltage relays

•Network Room Module (NRM)
